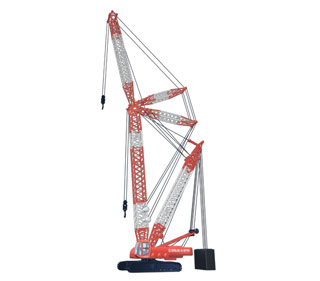

QUY260 Crawler Crane Main features 1. Outstanding lifting capacity: leading the trade and exceeding your imagination! 2. The crawler crane can carry out self-assembly/dismantling motion without the help of other auxiliary crane; the connecting parts are driven by the power pin cylinder; and the auxiliary mechanism of boom frame is designed distinctively. All the three features make the assembly, dismantling, conversion of the machine on the site and transportation between sites quicker and more convenient. 3. The crane adopts Germany Becker centralized lubrication system which ensures convenient maintenance and reduces the wear of component parts. 4. The dual-winch derricking mechanism makes derricking motion more stable and wire rope in order so that the service life of wire rope can be extended greatly . 5. The closed slewing mechanism with two slewing reducers, which has free swing function, can ensure accurate and stable slewing motion and excellent jogging performance. 6. The traveling mechanism can make the crane have high maneuverability and perform such motions as traveling in straight line, one-side crawler steering, differential steering and turning on the spot as well as traveling with load. 7. The control system is an electro-hydraulic proportional control system and computer integrated control system. The hydraulic system is open-close variable system and the electrical system adopts CAN-bus technology. A color digital LCD, which is fitted in operator's cab, can display the relative parameters effectively in real time. Furthermore, the electrical system can switch off crane when it is overloaded, cut off boom derricking motion when main boom and jib reaches limit position and carry out fault self-diagnosis. 8. The distinctive method of mounting the ballast is of simplicity, reliability, so the ballast can be fitted and removed easily. 9. The key components are imported from Germany . |
|
QUY260 Crawler Crane Main Technical Specifications |
Item |
Value |
Remarks |
||
Max. lifting capacity ¡Á Radius |
t ¡Á m |
260¡Á5 |
|
|
Deadweight with basic boom |
t |
210 |
|
|
Main boom length |
m |
20 ¡« 83 |
|
|
Length of main boom with light boom head |
m |
86 ¡« 95 |
|
|
Fixed jib length |
m |
12 ¡« 30 |
|
|
Max. lifting capacity of fixed jib |
t |
34 |
|
|
Offset angle of fixed jib |
¡ã |
10,30 |
|
|
Max. length of main boom with fixed jib |
m |
77 £« 30 |
|
|
Luffing jib length |
m |
21 ¡« 60 |
|
|
Max. lifting capacity of luffing jib |
t |
73.5 |
|
|
Main boom angle under luffing jib working condition |
¡ã |
65,75,85 |
|
|
Max. length of main boom with luffing jib |
m |
62 £« 60 |
|
|
Max. speed of single rope on drum |
Main winch |
m/min |
110 |
The 6th rope layer |
Auxiliary winch |
m/min |
110 |
The 6th rope layer |
|
Derricking winch |
m/min |
29X2 |
The 6th rope layer |
|
Luffing winch |
m/min |
46 |
(Optional) |
|
Slewing speed |
rpm |
0 ¡« 1.2 |
|
|
Traveling speed |
km/h |
0 ¡« 1.0 |
|
|
Gradeability |
£¥ |
30 |
|
|
Ground pressure |
MPa |
0.115 |
|
|
Overall dimensions (L¡ÁW¡ÁH) |
m |
10.2¡Á7.6¡Á3.3 |
Without mast and boom |
|
Engine |
Rated power/ rotational speed |
kW/rpm |
256/2100 |
|
Max. output torque/ rotational speed |
Nm/rpm |
1750/1200 |
|
|
Emission standard |
TIER 3 |
|
||
Crawler gauge ¡Áground contact length ¡Átrack shoe width |
mm |
6400¡Á8000¡Á1200 |
|
|
|

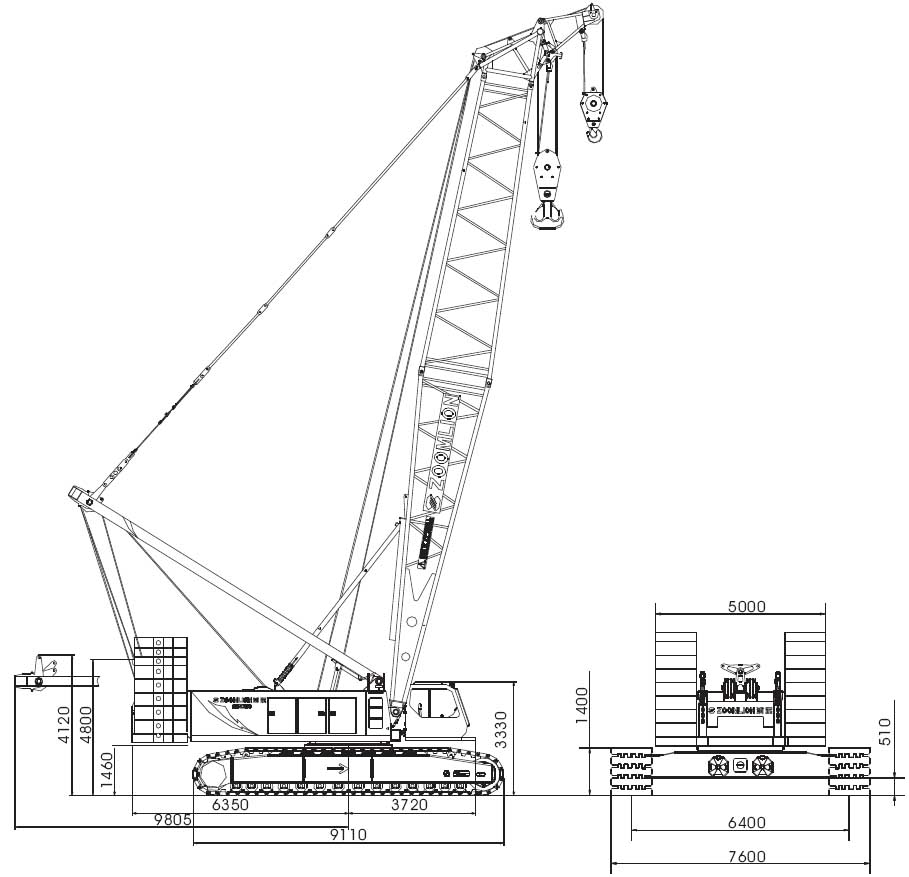

QUY260 Outline Dimensions and Weight of Main Transport Components |
 |
|
Technical instruction |
1.Boom and Pendant Plate |
|
It is lattice structure and made of imported high-strength
tubular product. Main boom Main boom length: 20m~83m Adjusting lengthened boom section length for main boom: 3m, 6m or 9m Light main boom length: 86m~95m Fixed fly jib Fixed fly jib length: 12m~30m Adjusting lengthened boom section length for fixed fly jib: 6m Main boom + longest length of fixed fly jib: 77m+30m Luffing fly jib Luffing fly jib length: 21m~60m Adjusting lengthened boom section length for luffing fly jib: 3m, 6m or 9m Main boom + longest length of fixed fly jib: 62m + 60m |
2.Mechanisms |
Main and auxiliary hoist mechanisms |
| It consists of hydraulic motor, balanced valve, reducer, closed
brake and wire rope. It is independent of other mechanisms to
be operated. Wire rope is a kind of special torsion-resistant one imported from Germany. Main and auxiliary hoist mechanisms are two-speed type, having two different lifting speeds, which can improve working efficiency. |
Boom hoist mechanism |
| It consists of concealed axial plunger hydraulic motor,
balanced valve, reducer, closed brake and wire rope. It is
independent of other mechanisms to be operated. Wire rope is a kind of special torsion-resistant one imported from Germany. It also has ratchet self-locking protecting mechanism, which can prevent luffing gear from slipping because of long time parking. |
Slewing gear |
| It consists of hydraulic motor, gear reducer, brake pinion gear
and slewing ring. The superstructure can realize 360¡ã slewing
via slewing ring which is driven by pinion gear. With controllable sliding control, slewing gear can reduce impact to ensure slewing start/ brake more stably. Adopting pump-control-motor system, slewing gear can reduce impact to ensure slewing start/ brake more stably. It also has controllable free-sliding function, which makes the crane meet the requirement of operation better. Slewing can realize stepless speed regulation varying from 0 to 1.2r/min. The slewing gear can be locked by two mechanical locking devices in front of the slewing table. |
Traveling mechanism |
| It adopts double-motor and double-reducer. Hydraulic motor,
traveling reducer and balanced valve are all imported. Two
sets of control levers respectively control two tracks
traveling to realize straight-line traveling, one-way steering,
differential steering, spot turn and traveling with load etc, and
then ensure the crawler crane has great mobility and flexibility. Traveling speed: 0.6 ¡«0.98km/h. Gradeability: 30%. Tension degree of track can be adjusted by jack. It is very quick, convenient and reliable. |
Mast raising mechanism |
| It consists of mast, mast raising cylinder and auxiliary hydraulic system etc. It is used for self-assembly/dismantling of the crane (or the change of working place). Raise the mast 90¡ãover the horizontal level so as to connect the pendant plate, assemble boom and install crawler side frame and counterweight. |
Operator's Cab Rotary and Pitching Mechanism |
| Operator's cab can rotate for 90¡ã from the side of slewing table to the front of slewing table and then be fixed by positioning pin, which reduces the width of complete vehicle to make it convenient for transportation. Operator's cab is tilted by cylinder. When the lifting height is high, operator s cab can be raised upwards for 20¡ãto broaden the driver's vision. |
Counterweight and counterweight assembly/dismantling
mechanism |
| It consists of base counterweight, counterweight, counterweight raising cylinder, bearing chain and fixed pin cylinder. It can realize self-assembly/dismantling of counterweight to improve utilization ratio of the crane and reduce danger of manual installation. |
Outrigger raising mechanism and track self- assembly/dismantling mechanism |
| Outrigger raising mechanism and track selfassembly/dismantling mechanism consist of outriggers,outrigger cylinders, outrigger valves and track power pin etc. Outrigger raising mechanism is the main load bearing mechanism when self-assemble/dismantle track. Through mast and mast raising mechanism, track self-assembly/dismantling mechanism is used to lift crawler side frame which is connected with frame by power pin. Outrigger raising mechanism and track self-assembly/dismantling mechanism can assemble/dismantle crawler side frame without auxiliary lifting equipment, which improves working efficiency and reduces labor intensity and avoids danger of manual operation. |
3.Systems |
Hydraulic system |
| Hydraulic system consists of main pump, control valve,
hydraulic motor, hydraulic oil tank and cooler etc. Hydraulic system adopts advanced pump control system in the world and its main components are all imported and have advantages of high efficiency, energy-saving and long service life. Hydraulic oil tank capacity: 700L. Cooler: aluminium radiator with electric fan. |
Electric appliance system |
| This system with 24V DC and earth negative, has two 195 AH
accumulators. Electric appliance of complete vehicle mainly includes power, engine start, engine shut-down, indicator light, annunciator, illumination, fan, wiper, horn, hoisting limiter, hydraulic oil cooling fan, digitized display, PLC controller, preheating device for engine and safety equipment etc., which ensure safe operation and excellent working environment of the crane. The complete vehicle adopts CAN-bus technology, which connects the engine, PLC controller and digitized display efficiently and have trouble detecting and self-diagnosis function. |
Power system |
| Engine is imported original VOLVO electric spraying diesel
engine with CAN-bus interface. Rated output power: 256kw, 2100r/min Max. output torque:1750Nm, 1200r/min Emission standard: U.S. EPA Tier II and EU Stage II Fuel tank capacity is 700L which ensures the working hours of engine long enough. |
Digitized display system |
| 10.4 inch large LCD intercalates Multilanguage display and
can centralized display operating condition signals collected by PLC controller, such as rotational speed of engine, water temperature, fuel pressure, hydraulic pump pressure and operating level of main frame etc. It can monitor working state in real time and give out a yellow or red warning signal when the working state of crane is abnormal. |
Centralized lubrication system |
| It adopts Bake centralized lubrication system imported from Germany, which prolongs the service life of crane greatly. |
4.Safety equipment |
Load moment limiter |
| When actual load moment reaches 90% of rated load moment,
the warning lamp lights up and the buzzer alarms; when it
arrives rated load moment, the crane stops working
automatically to prevent accidents occur because of overload
during operation and ensure normal and safe work. The load moment display shows the following data: load moment ratio, elevation angle of main boom, main boom length, working radius, actual load, permissible lifting load and max. permissible lifting height etc. |
Overflow valves of hydraulic system |
| It can restrain the abnormal high pressure in loop to prevent hydraulic oil pump and hydraulic motor from being damaged and prevent hydraulic system from overloading. |
Hoisting limiter |
| Prevent hook from excessive lifting and avoid accident occurring. |
Boom angle indicator |
| It is located at the lower rear of foot section (namely the right side of operator s cab). The driver can read the elevation angle clearly from the cab. |
Limit position alarm system for actuating arm |
| This system can ensure that the angle of actuating arm is within the specified range under operating conditions. |
Level sensor of complete vehicle |
| Detect the level state of complete vehicle. |
Anti-unhook device |
| Prevent load from falling off from the hook during lifting. |
Ratchet locking mechanism of luffing gear |
| It can prevent wire rope from sliding down owing to parking for a long time. |
Over-wind and over-release protection device for wire rope |
Anemoscope |
5.Operator s cab |
| It adopts all-steel structure. The four sides are all made of hardened glass, and the roof and the front window are furnished with laminated glass. It is equipped with right sun visor, adjustable seat, wiper, electric control levers, load moment display, digitized display, auxiliary remote control box operation assembly of switches, air conditioner, electric fan, illumination lamp, radio (CD player or DVD player is optional), cigarette lighter and fire extinguisher etc. It also supplies wide vision and spacious room for operator. |
6.Hook |
| It is equipped with rotatable hook and anti-unhook device. 260 t hook: assemble 10 sheaves 160 t hook: assemble 6 sheaves 50 t hook: assemble 2 sheaves 30 t hook: assemble 1 sheave 16 t hook: without sheave |
|

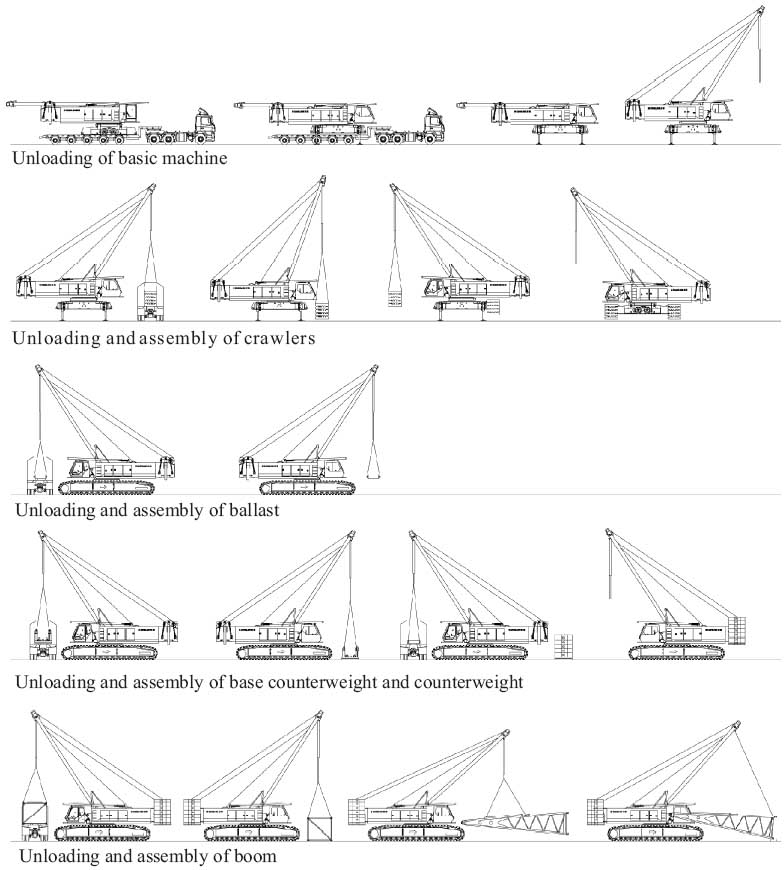

Entire self-assembly dismantling Function |
|

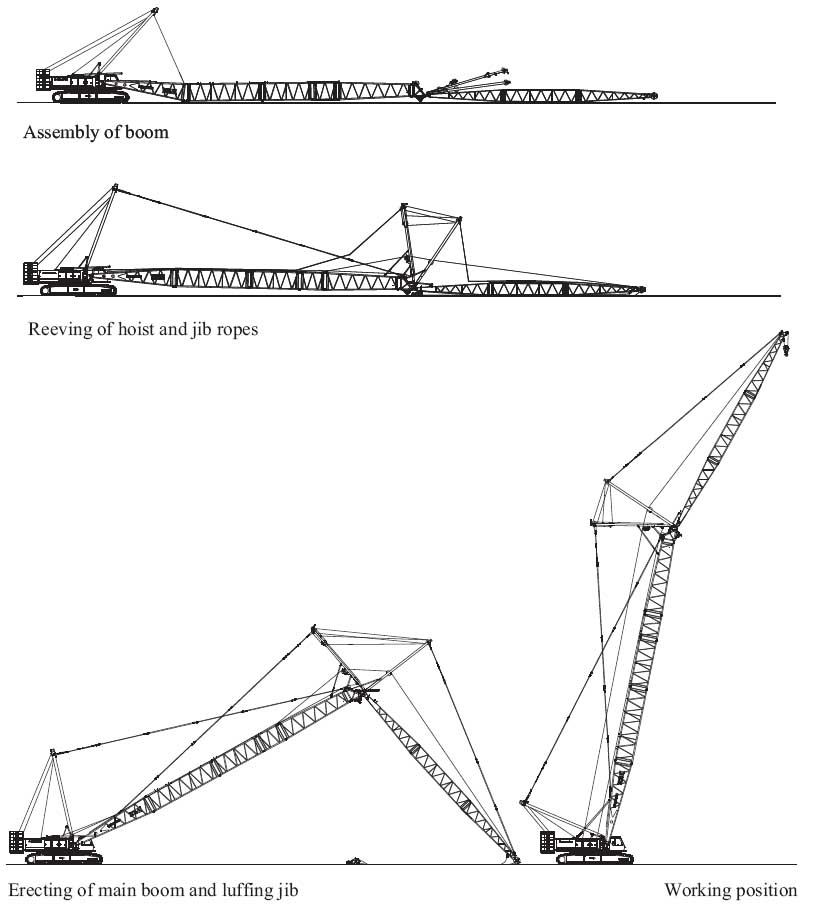

Take self-assembly/dismantling under luffing fly jib operating condition for example |
 |
 |
|
Main Boom Lifting Performance |
|

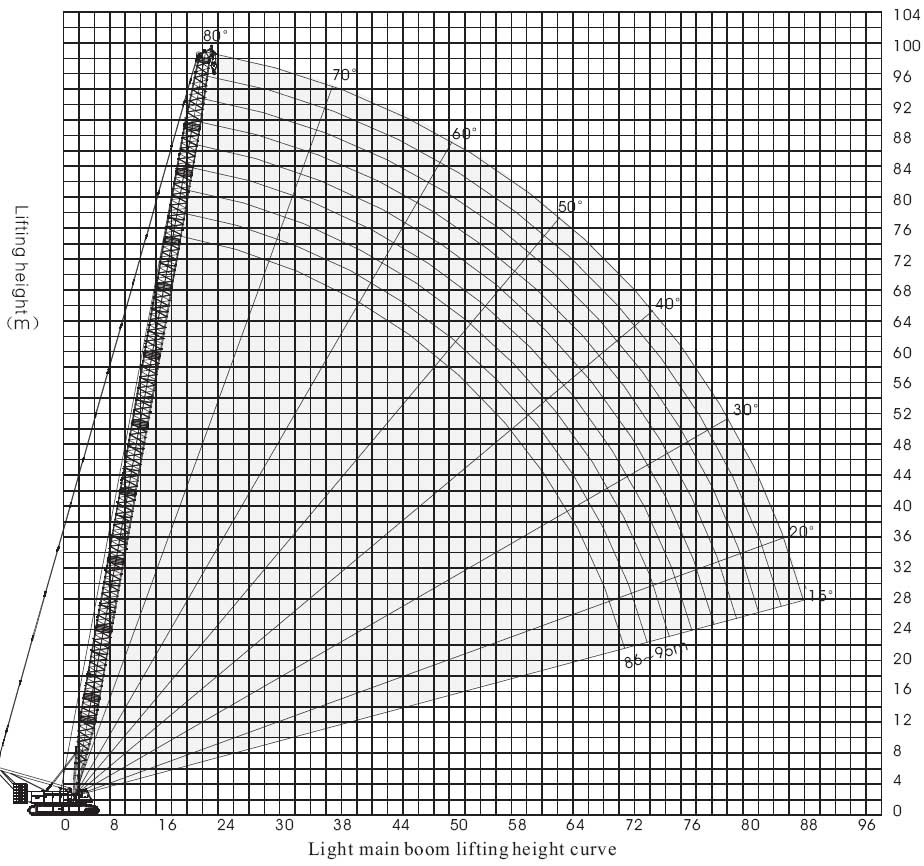

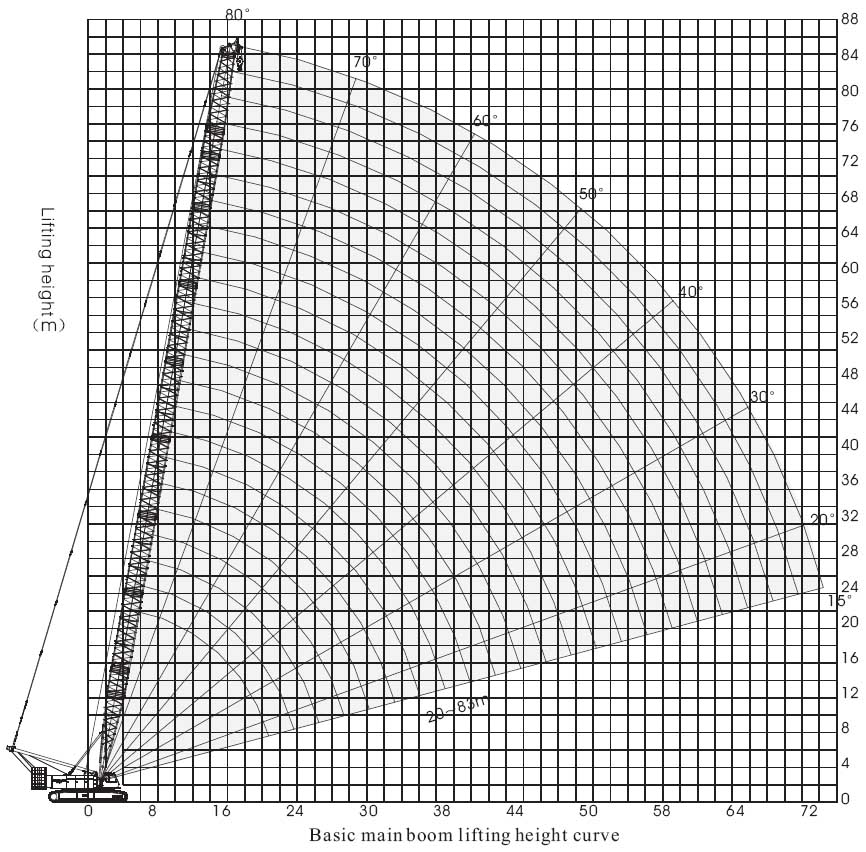

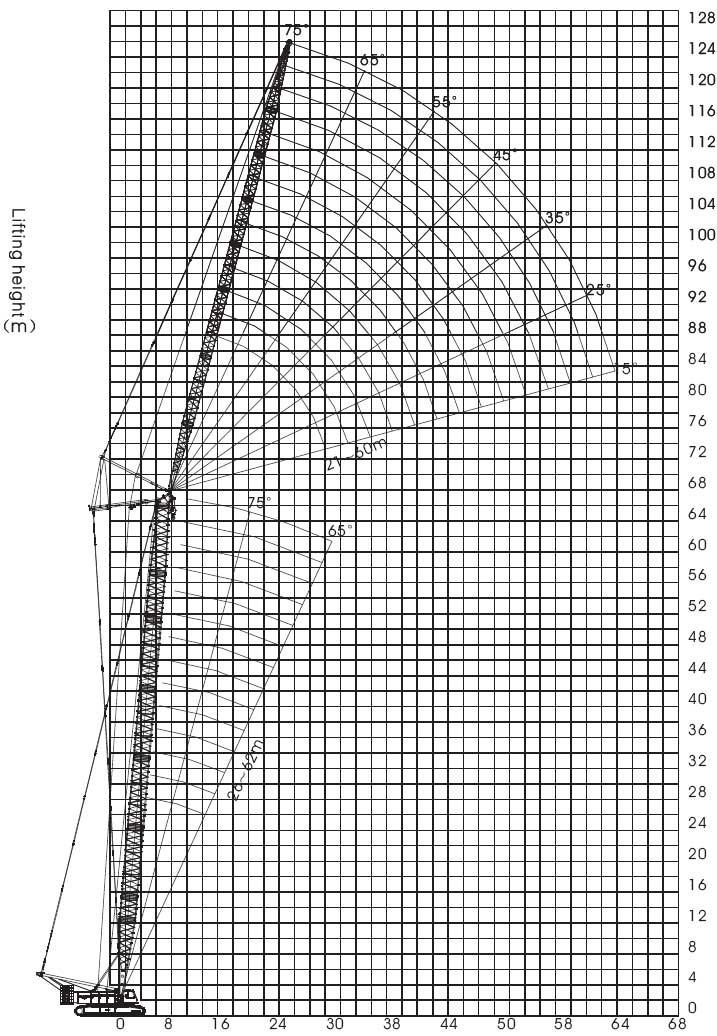

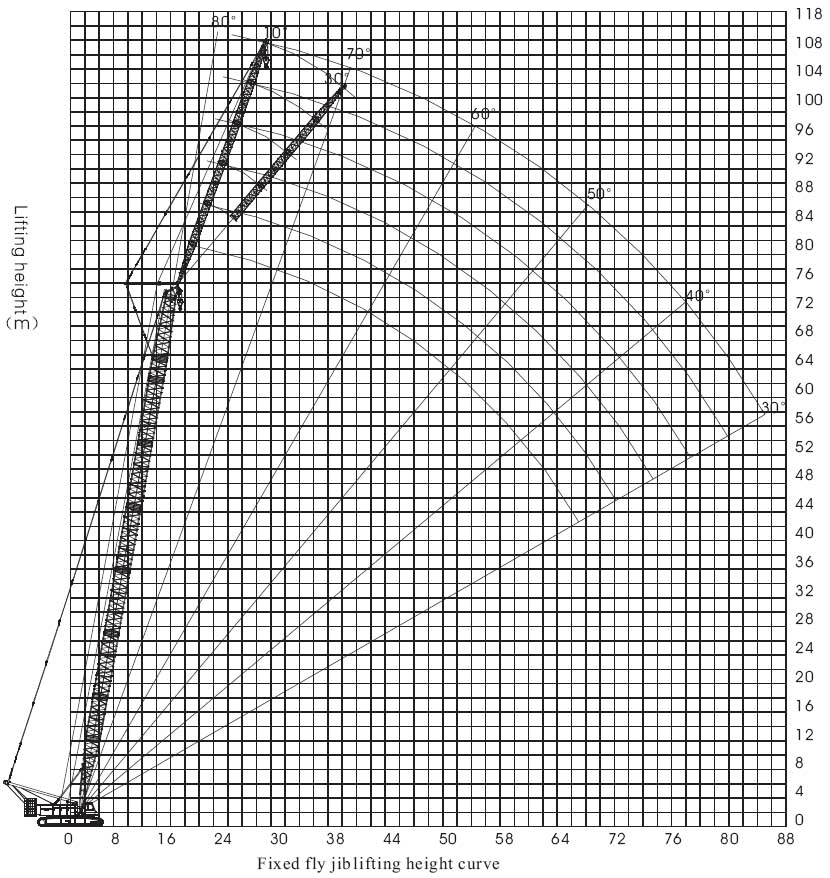

Main boom lifting height curve |
 |
 |
|
Main boom load rating chart(1) |
| Boom length(m) |
20.0 |
23.0 |
26.0 |
29.0 |
32.0 |
35.0 |
38.0 |
41.0 |
44.0 |
47.0 |
50.0 |
53.0 |
56.0 |
59.0 |
| Radius(m) |
|
|
|
|
|
|
|
|
|
|
|
|||
5.0 |
260.0 |
216.8 |
||||||||||||
6.0 |
227.0 |
200.8 |
193.1 |
178/6.4 |
||||||||||
7.0 |
190.3 |
181.8 |
171.8 |
167.7 |
157.9 |
156.7/7.5 |
||||||||
8.0 |
157.0 |
151.8 |
146.6 |
147.2 |
147.6 |
141.5 |
130.1 |
127/8.5 |
||||||
9.0 |
134.6 |
133.1 |
133.0 |
132.0 |
130.1 |
128.1 |
124.0 |
115.2 |
110.9 |
108/9.6 |
||||
10.0 |
119.6 |
115.3 |
120.0 |
118.1 |
117.5 |
114.3 |
111.0 |
103.8 |
103.8 |
97.9 |
100/10.1 |
93.5/10.6 |
82.1/11.1 |
80/11.6 |
12.0 |
95.3 |
92.5 |
92.8 |
92.1 |
92.3 |
91.0 |
90.5 |
89.1 |
85.9 |
85.1 |
83.0 |
81.1 |
78.5 |
76.5 |
14.0 |
76.1 |
74.9 |
74.2 |
74.2 |
73.8 |
73.5 |
73.1 |
73.0 |
72.5 |
71.8 |
71.0 |
70.0 |
66.9 |
66.3 |
16.0 |
63.7 |
63.5 |
63.3 |
63.053.5 |
61.8 |
61.5 |
61.0 |
60.5 |
60.0 |
60.1 |
61.1 |
60.7 |
58.0 |
57.4 |
18.0 |
54.8 |
54.5 |
53.7 |
46.7 |
52.7 |
52.4 |
53.5 |
51.7 |
52.5 |
51.0 |
51.2 |
52.1 |
51.0 |
50.9 |
20.0 |
47.6 |
46.6 |
41.4 |
46.4 |
46.2 |
45.1 |
44.8 |
44.5 |
44.3 |
44.5 |
44.4 |
45.0 |
44.5 |
|
22.0 |
44.8/21 |
41.6 |
37.0 |
41.7 |
40.5 |
39.8 |
39.6 |
39.4 |
39.2 |
39.8 |
40.0 |
40.0 |
38.9 |
|
24.0 |
38/23 |
33.5 |
37.4 |
36.2 |
36.0 |
35.7 |
35.1 |
34.9 |
34.7 |
35.2 |
35.0 |
34.5 |
||
26.0 |
33.9 |
32.6 |
32.1 |
35.0 |
31.7 |
31.5 |
31.1 |
32.0 |
31.6 |
30.9 |
||||
28.0 |
30.9 |
29.7 |
29.1 |
28.5 |
28.4 |
28.3 |
28.1 |
29.0 |
27.9 |
27.8 |
||||
30.0 |
28.6/29 |
27.2 |
27.0 |
26.4 |
26.2 |
26.1 |
26.1 |
25.6 |
25.4 |
25.3 |
||||
32.0 |
26/31 |
25.0 |
24.5 |
24.3 |
24.2 |
24.1 |
24.1 |
23.3 |
23.5 |
|||||
34.0 |
22.7 |
22.5 |
22.4 |
22.3 |
22.1 |
21.0 |
21.6 |
21.2 |
||||||
36.0 |
20.3 |
20.1 |
20.2 |
20.2 |
20.0 |
19.9 |
19.5 |
|||||||
38.0 |
19.2 |
19.1 |
18.9 |
18.2 |
18.6 |
18.1 |
||||||||
40.0 |
18.1/39 |
17.3 |
17.1 |
16.5 |
16.2 |
16.1 |
||||||||
42.0 |
16.2 |
16.2 |
15.9 |
15.5 |
15.5 |
|||||||||
44.0 |
15.0 |
14.5 |
14.4 |
14.4 |
||||||||||
46.0 |
13.8 |
13.6 |
13.5 |
|||||||||||
48.0 |
12.8/47 |
12.7 |
12.6 |
|||||||||||
50.0 |
11.9/49 |
11.9 |
||||||||||||
52.0 |
10.3 |
|
Main boom load rating chart(2) |
|
Boom length(m) |
62.0 |
65.0 |
68.0 |
71.0 |
74.0 |
77.0 |
80.0 |
83.0 |
86.0 |
89.0 |
92.0 |
95.0 |
|
Radius(m) |
|
|
|
|
|
|
|
|
|
|
|
|
12.0 |
76/12.2 |
70/12.7 |
64.8/13.2 |
|||||||||
14.0 |
67.2 |
63.5 |
62.3 |
58.7 |
52.9/14.3 |
46.2 |
||||||
16.0 |
57.0 |
55.2 |
54.2 |
53.0 |
51.5 |
45.6 |
41.0 |
36.6 |
30.9/16.3 |
28.1/16.9 |
25.3/17.4 |
|
18.0 |
50.6 |
48.6 |
42.5 |
46.6 |
45.9 |
44.4 |
39.8 |
35.7 |
30.0 |
27.3 |
24.9 |
21.0 |
20.0 |
44.1 |
43.3 |
38.2 |
41.6 |
40.9 |
40.2 |
38.7 |
34.6 |
29.9 |
25.9 |
24.0 |
20.4 |
22.0 |
38.8 |
38.3 |
33.9 |
37.5 |
36.7 |
36.1 |
35.4 |
31.2 |
27.9 |
24.6 |
22.8 |
19.7 |
24.0 |
34.5 |
33.9 |
30.3 |
33.6 |
33.2 |
32.6 |
31.9 |
28.3 |
27.0 |
23.9 |
21.7 |
19.0 |
26.0 |
31.3 |
30.4 |
27.3 |
30.0 |
29.9 |
29.6 |
29.0 |
26.4 |
26.1 |
23.0 |
20.6 |
18.0 |
28.0 |
27.8 |
27.4 |
24.7 |
27.0 |
26.9 |
26.8 |
26.4 |
23.6 |
25.2 |
22.0 |
19.8 |
17.0 |
30.0 |
25.5 |
24.8 |
22.5 |
24.5 |
24.3 |
24.2 |
24.0 |
21.5 |
23.1 |
21.0 |
19.2 |
16.0 |
32.0 |
23.1 |
22.6 |
20.6 |
22.3 |
22.1 |
22.0 |
21.8 |
19.6 |
21.2 |
20.3 |
18.3 |
15.8 |
34.0 |
21.1 |
20.7 |
18.9 |
20.4 |
20.2 |
20.1 |
20.0 |
19.5 |
19.4 |
18.6 |
17.7 |
14.4 |
36.0 |
19.5 |
19.5 |
17.5 |
18.7 |
18.5 |
18.4 |
18.2 |
18.0 |
17.8 |
17.1 |
16.5 |
13.0 |
38.0 |
18.1 |
17.9 |
16.2 |
17.2 |
17.0 |
16.9 |
16.7 |
16.4 |
16.3 |
15.7 |
15.7 |
11.9 |
40.0 |
16.0 |
16.3 |
15.0 |
15.9 |
15.7 |
15.6 |
15.4 |
15.0 |
14.9 |
14.6 |
14.5 |
10.8 |
42.0 |
15.5 |
15.6 |
13.9 |
14.7 |
14.5 |
14.4 |
14.2 |
14.0 |
13.8 |
13.5 |
13.4 |
9.8 |
44.0 |
14.3 |
14.2 |
13.0 |
13.6 |
13.5 |
13.3 |
13.1 |
13.0 |
12.7 |
12.4 |
12.3 |
9.0 |
46.0 |
13.5 |
13.3 |
12.1 |
12.7 |
12.5 |
12.4 |
12.2 |
12.0 |
11.7 |
11.5 |
11.4 |
8.2 |
48.0 |
12.6 |
12.3 |
11.3 |
11.8 |
11.7 |
11.5 |
11.3 |
11.0 |
10.8 |
10.5 |
10.4 |
7.4 |
50.0 |
11.9 |
11.4 |
10.0 |
11.0 |
10.9 |
10.7 |
10.5 |
10.0 |
9.9 |
9.6 |
9.5 |
6.7 |
52.0 |
10.2 |
10.0 |
9.0 |
10.3 |
10.1 |
9.9 |
9.7 |
9.3 |
9.1 |
8.8 |
8.7 |
6.0 |
54.0 |
9.2 |
9.1 |
8.9 |
8.9 |
9.4 |
9.2 |
8.9 |
8.5 |
8.4 |
8.1 |
8.0 |
5.3 |
56.0 |
8.8/55 |
8.9 |
8.0 |
8.8 |
8.7 |
8.5 |
8.2 |
8.2 |
7.7 |
7.4 |
7.3 |
4.8 |
58.0 |
8/57 |
6.8 |
8.3 |
8.1 |
7.9 |
7.6 |
7.3 |
7.1 |
6.7 |
6.6 |
4.3 |
|
60.0 |
7.7 |
7.5 |
7.3 |
7.0 |
6.6 |
6.5 |
6.1 |
6.0 |
3.8 |
|||
62.0 |
7.2 |
7.0 |
6.8 |
6.5 |
6.2 |
5.9 |
5.6 |
5.5 |
3.3 |
|||
64.0 |
6.5 |
6.3 |
6.0 |
5.6 |
5.4 |
5.1 |
5.0 |
2.9 |
||||
66.0 |
5.7/65 |
5.8 |
5.5 |
5.1 |
5.0 |
4.6 |
4.5 |
2.7 |
||||
68.0 |
5.2 |
5.1 |
4.4 |
4.5 |
4.0 |
3.9 |
2.6 |
|||||
70.0 |
4.7 |
4.5 |
4.1 |
3.4 |
2.8 |
2.5 |
||||||
72.0 |
3.8 |
3.7 |
2.8 |
2.7 |
2.4 |
|||||||
74.0 |
3.4 |
2.7 |
2.6 |
2.3 |
||||||||
76.0 |
2.6 |
2.5 |
2.3 |
|||||||||
78.0 |
2.5 |
2.4 |
2.2 |
|||||||||
80.0 |
2.2 |
2.1 |
||||||||||
82.0 |
2.0 |
|||||||||||
84.0 |
|
Main boom + fixed fly jib lifting performance |
|
Main boom + fixed fly jib lifting height curve |
 |
|
Fixed fly jib load rating chart |
Main boom length(m) |
38
|
47 |
||||||||||||||
Fly jib Lenght(m) |
12 |
18 |
24 |
30 |
12 |
18 |
24 |
30 |
||||||||
Fly jib mounting angle(¡ã) |
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
Working radius(m) |
||||||||||||||||
14 |
32.5 |
32.5 |
||||||||||||||
16 |
32.0 |
28.5 |
26.0 |
32.0 |
25.2 |
|||||||||||
18 |
31.3 |
28.1 |
24.9 |
17.8 |
31.3 |
27.5 |
24.2 |
17.3 |
||||||||
20 |
30.7 |
26.9 |
24.2 |
19.8 |
17.5 |
12.8 |
30.7 |
27.1 |
23.5 |
17.0 |
12.4 |
|||||
22 |
30.0 |
25.9 |
23.5 |
19.5 |
17.1 |
12.5 |
30.0 |
26.9 |
22.8 |
19.2 |
16.6 |
12.1 |
||||
24 |
29.0 |
24.8 |
22.7 |
19.2 |
16.6 |
14.0 |
12.3 |
29.0 |
26.0 |
22.0 |
18.9 |
16.2 |
11.9 |
|||
26 |
28.0 |
23.9 |
22.2 |
18.4 |
16.3 |
13.9 |
12.0 |
28.0 |
25.0 |
21.5 |
18.7 |
15.9 |
13.7 |
11.6 |
||
28 |
27.0 |
23.0 |
21.4 |
17.7 |
15.9 |
13.7 |
11.7 |
9.7 |
27.0 |
24.2 |
20.8 |
18.3 |
15.5 |
13.5 |
11.3 |
|
30 |
25.5 |
22.2 |
20.6 |
17.1 |
15.6 |
13.5 |
11.3 |
9.6 |
25.5 |
23.1 |
20.0 |
17.9 |
15.2 |
13.3 |
11.0 |
9.3 |
32 |
24.0 |
21.5 |
20.1 |
16.5 |
15.3 |
13.2 |
11.1 |
9.4 |
24.0 |
22.2 |
19.5 |
17.3 |
14.8 |
13.1 |
10.8 |
9.1 |
34 |
22.6 |
20.8 |
19.4 |
15.9 |
14.9 |
12.7 |
10.8 |
9.3 |
22.3 |
21.3 |
18.8 |
16.8 |
14.5 |
12.8 |
10.5 |
9.0 |
36 |
21.7 |
20.3 |
18.3 |
15.4 |
14.6 |
12.3 |
10.6 |
9.1 |
21.4 |
20.5 |
17.8 |
16.2 |
14.2 |
12.5 |
10.3 |
8.8 |
38 |
20.9 |
19.5 |
17.5 |
14.9 |
14.4 |
11.8 |
10.3 |
8.9 |
20.5 |
19.1 |
17.0 |
15.7 |
14.0 |
12.0 |
10.0 |
8.7 |
40 |
19.4 |
18.6 |
16.6 |
14.3 |
13.9 |
11.4 |
10.1 |
8.8 |
19.1 |
18.2 |
16.1 |
15.2 |
13.5 |
11.7 |
9.8 |
8.6 |
42 |
18.3 |
17.4 |
15.7 |
13.7 |
13.6 |
11.1 |
9.9 |
8.6 |
17.8 |
17.1 |
15.2 |
14.2 |
13.2 |
11.5 |
9.6 |
8.4 |
44 |
17.1 |
16.5 |
14.9 |
12.8 |
13.3 |
10.7 |
9.7 |
8.6 |
16.6 |
16.2 |
14.5 |
13.3 |
12.9 |
11.0 |
9.4 |
8.4 |
46 |
15.7 |
14.4 |
12.1 |
12.8 |
10.4 |
9.5 |
8.3 |
15.4 |
15.4 |
14.0 |
12.4 |
12.4 |
10.6 |
9.2 |
8.2 |
|
48 |
13.9 |
11.6 |
12.0 |
10.1 |
9.3 |
8.1 |
14.4 |
14.6 |
13.5 |
11.7 |
11.6 |
10.2 |
9.0 |
8.1 |
||
50 |
13.4 |
10.8 |
11.3 |
9.8 |
9.2 |
7.9 |
13.5 |
13.7 |
13.0 |
11.3 |
11.0 |
9.8 |
8.9 |
7.9 |
||
52 |
10.3 |
10.7 |
9.5 |
8.9 |
7.7 |
12.6 |
12.8 |
12.5 |
10.5 |
10.4 |
9.5 |
8.7 |
7.8 |
|||
54 |
10.1 |
9.2 |
8.8 |
7.5 |
12.0 |
11.6 |
10.0 |
9.8 |
9.1 |
8.6 |
7.7 |
|||||
56 |
9.6 |
9.1 |
8.6 |
7.4 |
10.8 |
9.2 |
9.3 |
9.0 |
8.3 |
7.6 |
||||||
58 |
8.7 |
8.3 |
7.2 |
9.0 |
8.8 |
8.6 |
8.1 |
7.5 |
||||||||
60 |
8.2 |
7.1 |
8.0 |
8.4 |
8.3 |
8.0 |
7.4 |
|||||||||
62 |
8.0 |
7.0 |
8.0 |
8.0 |
7.8 |
7.2 |
||||||||||
64 |
7.0 |
7.5 |
7.5 |
7.5 |
7.1 |
|||||||||||
66 |
7.0 |
7.3 |
7.0 |
|||||||||||||
68 |
6.8 |
7.0 |
6.9 |
|||||||||||||
70 |
6.8 |
6.4 |
||||||||||||||
72 |
5.6 |
|||||||||||||||
74 |
||||||||||||||||
|
Fixed fly jib load rating chart |
Main boom length(m) |
59
|
68 |
||||||||||||||
Fly jib Lenght(m) |
12 |
18 |
24 |
30 |
12 |
18 |
24 |
30 |
||||||||
Fly jib mounting angle(¡ã) |
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
Working radius(m) |
||||||||||||||||
16 |
32.0 |
|||||||||||||||
18 |
31.7 |
25.3 |
32.0 |
|||||||||||||
20 |
31.1 |
27.0 |
24.5 |
16.8 |
31.7 |
25.2 |
||||||||||
22 |
30.6 |
26.6 |
23.6 |
16.6 |
12.1 |
30.7 |
27.0 |
24.4 |
16.8 |
|||||||
24 |
28.2 |
26.5 |
22.9 |
18.9 |
16.5 |
12 |
28.0 |
26.6 |
23.7 |
16.6 |
12.1 |
|||||
26 |
27.4 |
25.9 |
22.2 |
18.8 |
16.2 |
11.9 |
27.3 |
25.5 |
23.0 |
18.9 |
16.5 |
12 |
||||
28 |
26.6 |
23.4 |
21.6 |
18.6 |
15.9 |
13.5 |
11.7 |
26.6 |
23.0 |
22.3 |
18.7 |
16.2 |
11.9 |
|||
30 |
25.9 |
21.2 |
21.0 |
18.4 |
15.6 |
13.4 |
11.4 |
26.1 |
20.9 |
21.7 |
18.6 |
15.9 |
13.5 |
11.7 |
||
32 |
25.2 |
19.4 |
20.5 |
18.2 |
15.3 |
13.3 |
11.1 |
9.2 |
24.7 |
20.3 |
21.2 |
18.4 |
15.7 |
13.4 |
11.4 |
|
34 |
23.3 |
18.8 |
19.9 |
18.0 |
15.1 |
13.2 |
10.9 |
9.1 |
22.6 |
19.7 |
19.9 |
18.0 |
15.5 |
13.3 |
11.2 |
9.2 |
36 |
21.4 |
18.4 |
19.4 |
16.9 |
14.8 |
13.0 |
10.7 |
8.9 |
20.6 |
19.2 |
19.5 |
16.5 |
15.2 |
13.2 |
11 |
9.1 |
38 |
19.7 |
17.9 |
19.0 |
15.6 |
14.6 |
12.9 |
10.5 |
8.8 |
18.9 |
18.7 |
19.1 |
15.3 |
14.9 |
13.0 |
10.8 |
8.9 |
40 |
18.1 |
17.4 |
18.5 |
14.5 |
14.3 |
12.7 |
10.2 |
8.7 |
17.4 |
18.0 |
17.8 |
14.3 |
13.8 |
12.9 |
10.6 |
8.9 |
42 |
16.8 |
17.0 |
17.2 |
13.5 |
13.3 |
12.6 |
10 |
8.6 |
16 |
16.6 |
16.4 |
13.9 |
12.9 |
12.8 |
10.4 |
8.7 |
44 |
15.5 |
16.0 |
15.9 |
13.0 |
12.4 |
12.5 |
9.8 |
8.5 |
14.8 |
15.3 |
15.2 |
13.6 |
12 |
12.6 |
10.2 |
8.6 |
46 |
14.4 |
14.8 |
14.8 |
12.6 |
11.7 |
12.2 |
9.6 |
8.4 |
13.7 |
14.2 |
14.1 |
13.2 |
11.1 |
11.8 |
10 |
8.6 |
48 |
13.4 |
13.8 |
13.8 |
12.4 |
10.9 |
11.4 |
9.5 |
8.3 |
12.7 |
13.1 |
13 |
13.0 |
10.5 |
11.1 |
9.8 |
8.4 |
50 |
12.5 |
12.8 |
12.8 |
12.1 |
10.2 |
10.7 |
9.3 |
8.2 |
11.7 |
12.2 |
12.1 |
12.7 |
9.8 |
10.3 |
9.6 |
8.3 |
52 |
11.6 |
11.9 |
12 |
11.9 |
9.6 |
10.1 |
9.2 |
8 |
10.9 |
11.3 |
11.2 |
11.9 |
9.4 |
9.7 |
9.4 |
8.3 |
54 |
10.9 |
11.1 |
11.2 |
11.6 |
9.4 |
9.5 |
9 |
7.9 |
10.1 |
10.4 |
10.5 |
11.0 |
9.2 |
9.1 |
8.8 |
8.2 |
56 |
10.1 |
10.3 |
10.5 |
10.9 |
9.1 |
8.9 |
8.7 |
7.8 |
9.4 |
9.7 |
9.7 |
10.2 |
9.1 |
8.6 |
8.3 |
8 |
58 |
9.4 |
9.6 |
9.8 |
10.2 |
9.0 |
8.4 |
8.3 |
7.7 |
8.7 |
9.0 |
9 |
9.5 |
8.8 |
8.0 |
7.8 |
8 |
60 |
8.8 |
9.0 |
9.1 |
9.5 |
8.8 |
8.0 |
7.8 |
7.6 |
8.1 |
8.3 |
8.4 |
8.8 |
8.6 |
7.7 |
7.4 |
7.8 |
62 |
8.2 |
8.4 |
8.6 |
8.8 |
8.6 |
7.5 |
7.4 |
7.5 |
7.5 |
7.7 |
7.8 |
8.2 |
8.1 |
7.6 |
6.9 |
7.4 |
64 |
7.8 |
8 |
8.3 |
8.3 |
7.3 |
7 |
7.4 |
6.9 |
7.1 |
7.3 |
7.6 |
7.5 |
7.4 |
6.5 |
7 |
|
66 |
7.5 |
7.7 |
7.7 |
7.3 |
6.6 |
7 |
6.4 |
6.6 |
6.7 |
7.1 |
6.9 |
7.4 |
6.2 |
6.6 |
||
68 |
7 |
7.2 |
7.3 |
7.2 |
6.3 |
6.6 |
5.9 |
6.1 |
6.2 |
6.5 |
6.3 |
7.3 |
5.8 |
6.2 |
||
70 |
6.7 |
6.8 |
7.2 |
5.9 |
6.2 |
5.3 |
5.5 |
5.6 |
5.9 |
5.8 |
7.1 |
5.5 |
5.9 |
|||
72 |
6.3 |
7.2 |
5.5 |
5.9 |
4.9 |
5.1 |
5.4 |
5.3 |
6.6 |
5.2 |
5.6 |
|||||
74 |
5.8 |
6.8 |
5 |
5.6 |
4.6 |
4.8 |
4.8 |
6.1 |
4.8 |
5.2 |
||||||
76 |
6.4 |
4.5 |
5 |
4.3 |
4.5 |
4.5 |
5.6 |
4.4 |
4.9 |
|||||||
78 |
4.1 |
4.5 |
4.2 |
4.2 |
5.2 |
4.1 |
4.5 |
|||||||||
80 |
3.6 |
4.1 |
3.9 |
4.8 |
3.9 |
4.2 |
||||||||||
82 |
3.8 |
3.7 |
4.4 |
3.6 |
3.9 |
|||||||||||
84 |
4.1 |
3.4 |
3.7 |
|||||||||||||
86 |
3.4 |
|||||||||||||||
|
Fixed fly jib load rating chart |
Main boom length(m) |
77
|
|||||||
Fly jib Lenght(m) |
12 |
18 |
24 |
30 |
||||
Fly jib mounting angle(¡ã) |
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
10.0 |
30.0
|
Working radius(m) |
||||||||
20 |
32.0 |
|||||||
22 |
31.8 |
25.0 |
||||||
24 |
30.4 |
22.7 |
24.2 |
14.3 |
||||
26 |
27.5 |
22.4 |
23.6 |
13.9 |
8.3 |
|||
28 |
27.0 |
22.1 |
23.0 |
16.2 |
13.6 |
8.0 |
||
30 |
26.0 |
21.6 |
22.4 |
16.1 |
13.3 |
7.8 |
||
32 |
23.9 |
21.0 |
22.0 |
15.8 |
13.0 |
9.5 |
7.5 |
|
34 |
21.8 |
20.4 |
21.5 |
15.7 |
12.7 |
9.4 |
7.4 |
|
36 |
19.9 |
19.9 |
20.4 |
15.5 |
12.4 |
9.2 |
7.1 |
6.9 |
38 |
18.2 |
19.4 |
18.6 |
15.2 |
12.1 |
9.0 |
6.7 |
6.8 |
40 |
16.7 |
17.9 |
17.1 |
14.8 |
11.9 |
8.9 |
6.5 |
6.7 |
42 |
15.3 |
16.3 |
15.7 |
14.4 |
11.6 |
8.8 |
6.4 |
6.5 |
44 |
14.1 |
15.0 |
14.5 |
14.0 |
11.4 |
8.6 |
6.1 |
6.5 |
46 |
12.9 |
13.8 |
13.3 |
13.8 |
11.2 |
8.5 |
6.0 |
6.4 |
48 |
11.9 |
12.6 |
12.3 |
13.4 |
10.9 |
8.4 |
5.9 |
6.3 |
50 |
11 |
11.6 |
11.4 |
12.2 |
10.7 |
8.3 |
5.8 |
6.3 |
52 |
10.1 |
10.7 |
10.5 |
11.2 |
10.4 |
8.2 |
5.5 |
6.2 |
54 |
9.3 |
9.8 |
9.7 |
10.4 |
10 |
8.0 |
5.4 |
6.1 |
56 |
8.6 |
9.0 |
9 |
9.6 |
9.2 |
8.0 |
5.3 |
6.1 |
58 |
7.9 |
8.3 |
8.3 |
8.9 |
8.4 |
7.9 |
5.2 |
6.1 |
60 |
7.3 |
7.6 |
7.6 |
8.1 |
7.7 |
7.8 |
5.0 |
5.6 |
62 |
6.7 |
7.0 |
6.9 |
7.5 |
7.1 |
7.7 |
4.9 |
5.1 |
64 |
6 |
6.4 |
6.3 |
6.8 |
6.5 |
7.7 |
4.8 |
4.7 |
66 |
5.5 |
5.8 |
5.7 |
6.2 |
5.9 |
7.3 |
4.7 |
4.3 |
68 |
4.9 |
5.2 |
5.1 |
5.6 |
5.3 |
6.8 |
4.6 |
3.9 |
70 |
4.5 |
4.7 |
4.6 |
5.0 |
4.8 |
6.2 |
4.6 |
3.5 |
72 |
4.2 |
4.2 |
4.3 |
4.6 |
4.4 |
5.8 |
4.4 |
3.4 |
74 |
3.9 |
3.8 |
4 |
4.3 |
4.2 |
5.3 |
4.3 |
3.4 |
76 |
3.6 |
3.4 |
3.7 |
4.0 |
3.9 |
4.8 |
4.2 |
3.4 |
78 |
3.3 |
3.0 |
3.4 |
3.7 |
3.6 |
4.4 |
4.2 |
3.2 |
80 |
2.6 |
3.0 |
3.2 |
3.4 |
4.0 |
4.0 |
3.2 |
|
82 |
2.6 |
2.9 |
3.1 |
3.6 |
3.6 |
3.2 |
||
84 |
2.3 |
2.5 |
2.8 |
3.2 |
3.2 |
3.2 |
||
86 |
2.2 |
2.5 |
2.9 |
3.0 |
3.1 |
|||
88 |
2.2 |
2.5 |
2.6 |
2.8 |
||||
90 |
2.0 |
2.2 |
2.4 |
2.4 |
||||
92 |
1.9 |
2.0 |
2.0 |
|||||
94 |
||||||||
|
Main boom + luffing fly jib lifting height curve |
 |
|
Luffing fly jib load rating chart |
Main boom length(m) |
29
|
29 |
||||||||||||||||
Fly jib Lenght(m) |
21 |
24 |
27 |
30 |
33 |
36 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
10.0 |
70.9 |
68.0 |
||||||||||||||||
12.0 |
65.2 |
64.5 |
64.5 |
61.5 |
||||||||||||||
14.0 |
58.1 |
58.6 |
58.6 |
58.6 |
54.0 |
42.5 |
||||||||||||
16.0 |
49.9 |
50.7 |
51.0 |
51.0 |
51.9 |
41.7 |
||||||||||||
18.0 |
41.9 |
48.5 |
42.6 |
42.9 |
42.9 |
43.7 |
39.3 |
|||||||||||
20.0 |
35.9 |
42.8 |
36.5 |
42.7 |
36.9 |
36.9 |
37.5 |
36.5 |
||||||||||
22.0 |
31.2 |
38.0 |
31.8 |
37.9 |
32.1 |
37.8 |
32.1 |
37.6 |
32.7 |
33.2 |
||||||||
24.0 |
28.0 |
34.0 |
28.0 |
33.9 |
28.4 |
33.8 |
28.4 |
33.6 |
28.9 |
33.7 |
29.3 |
|||||||
26.0 |
30.8 |
28.7 |
26.7 |
30.8 |
25.2 |
30.6 |
25.3 |
30.5 |
25.7 |
30.5 |
26.1 |
30.5 |
||||||
28.0 |
28.0 |
26.1 |
28.0 |
26.0 |
22.7 |
27.9 |
22.7 |
27.7 |
23.2 |
27.8 |
23.4 |
27.7 |
||||||
30.0 |
24.0 |
25.7 |
23.9 |
18.5 |
25.6 |
23.7 |
20.6 |
25.4 |
21.0 |
25.5 |
21.2 |
25.4 |
||||||
32.0 |
22.2 |
23.1 |
22.1 |
23.6 |
21.9 |
17.9 |
23.4 |
21.7 |
19.1 |
23.5 |
19.3 |
23.5 |
||||||
34.0 |
20.5 |
21.6 |
20.3 |
21.7 |
20.1 |
17.3 |
21.8 |
20.2 |
17.6 |
21.7 |
||||||||
36.0 |
18.9 |
19.6 |
18.7 |
20.1 |
18.8 |
16.2 |
20.3 |
18.7 |
||||||||||
38.0 |
17.6 |
17.4 |
18.4 |
17.5 |
14.2 |
18.6 |
17.4 |
|||||||||||
40.0 |
16.4 |
16.8 |
16.4 |
17.0 |
16.4 |
|||||||||||||
42.0 |
15.3 |
15.4 |
15.6 |
15.3 |
||||||||||||||
44.0 |
14.5 |
14.5 |
||||||||||||||||
46.0 |
13.7 |
|||||||||||||||||
48.0 |
12.9 |
|||||||||||||||||
Main boom length(m) |
29 |
29 |
||||||||||||||||
Fly jib Lenght(m) |
39 |
42 |
45 |
48 |
51 |
54 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
14.0 |
37.0 |
|||||||||||||||||
16.0 |
36.1 |
31.1 |
25.0 |
|||||||||||||||
18.0 |
33.3 |
29.2 |
24.3 |
21.0 |
18.7 |
15.5 |
||||||||||||
20.0 |
30.9 |
27.1 |
22.5 |
19.3 |
17.2 |
15.0 |
||||||||||||
22.0 |
28.8 |
25.1 |
20.9 |
18.0 |
16.0 |
13.9 |
||||||||||||
24.0 |
27.0 |
23.4 |
19.5 |
16.7 |
14.8 |
12.8 |
||||||||||||
26.0 |
25.3 |
29.8 |
21.9 |
18.3 |
15.6 |
13.9 |
12.3 |
|||||||||||
28.0 |
23.4 |
27.6 |
20.7 |
24.3 |
17.2 |
19.0 |
14.6 |
12.9 |
12.0 |
|||||||||
30.0 |
21.2 |
25.3 |
19.5 |
22.7 |
16.2 |
18.9 |
13.8 |
16.2 |
12.2 |
11.7 |
||||||||
32.0 |
19.3 |
23.3 |
18.5 |
21.3 |
15.3 |
17.7 |
13.0 |
15.1 |
11.9 |
13.3 |
11.4 |
11.0 |
||||||
34.0 |
17.6 |
21.6 |
17.5 |
20.2 |
14.5 |
16.7 |
12.3 |
14.2 |
11.6 |
12.5 |
11.1 |
10.6 |
||||||
36.0 |
16.2 |
20.2 |
17.5 |
16.1 |
19.0 |
13.8 |
15.8 |
11.6 |
13.3 |
11.4 |
11.8 |
10.9 |
10.0 |
|||||
38.0 |
14.9 |
18.6 |
17.3 |
14.8 |
18.1 |
16.5 |
13.1 |
14.9 |
11.5 |
12.6 |
11.3 |
11.0 |
10.8 |
9.8 |
||||
40.0 |
13.7 |
17.0 |
16.2 |
13.8 |
16.9 |
16.0 |
12.5 |
14.2 |
16.1 |
11.2 |
12.0 |
11.0 |
10.4 |
10.5 |
9.5 |
|||
42.0 |
15.6 |
15.2 |
12.7 |
15.5 |
15.0 |
12.0 |
13.5 |
15.1 |
11.0 |
11.3 |
12.9 |
10.8 |
10.3 |
10.3 |
9.3 |
|||
44.0 |
14.5 |
14.3 |
11.1 |
14.4 |
14.1 |
11.4 |
12.9 |
14.2 |
10.9 |
10.8 |
12.3 |
10.7 |
10.1 |
10.7 |
10.2 |
9.1 |
||
46.0 |
13.3 |
13.5 |
13.3 |
13.3 |
11.0 |
12.3 |
13.4 |
10.5 |
10.3 |
11.7 |
10.3 |
9.9 |
10.1 |
9.8 |
8.9 |
8.4 |
||
48.0 |
12.8 |
12.3 |
12.6 |
11.8 |
12.7 |
10.2 |
9.8 |
11.0 |
10.0 |
9.8 |
9.6 |
9.5 |
8.8 |
8.0 |
||||
50.0 |
12.1 |
12.0 |
11.3 |
12.0 |
9.6 |
9.6 |
10.5 |
9.7 |
9.6 |
9.0 |
9.2 |
8.6 |
7.5 |
|||||
52.0 |
11.3 |
10.9 |
11.3 |
9.2 |
10.0 |
9.5 |
9.2 |
8.6 |
9.0 |
8.2 |
7.1 |
|||||||
54.0 |
10.8 |
10.8 |
8.8 |
9.6 |
8.8 |
8.2 |
8.0 |
7.8 |
6.7 |
|||||||||
56.0 |
10.3 |
9.1 |
8.6 |
7.9 |
7.5 |
7.6 |
6.4 |
|||||||||||
58.0 |
8.8 |
8.4 |
7.5 |
7.4 |
6.1 |
|||||||||||||
60.0 |
8.5 |
7.1 |
7.3 |
5.8 |
||||||||||||||
62.0 |
6.8 |
5.5 |
||||||||||||||||
64.0 |
5.3 |
|||||||||||||||||
Main boom length(m) |
29 |
38 |
|||||||||||||
Fly jib Lenght(m) |
57 |
60 |
21 |
24 |
27 |
||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
Working radius(m) |
|||||||||||||||
12.0 |
65.3 |
61.5 |
61.5 |
||||||||||||
14.0 |
59.1 |
57.8 |
57.2 |
||||||||||||
16.0 |
51.2 |
52.1 |
52.4 |
||||||||||||
18.0 |
42.8 |
43.6 |
43.9 |
||||||||||||
20.0 |
12.0 |
10.0 |
36.5 |
40.0 |
37.3 |
37.5 |
|||||||||
22.0 |
11.6 |
9.6 |
31.7 |
36.4 |
32.3 |
36.5 |
32.7 |
||||||||
24.0 |
11.0 |
9.0 |
26.1 |
32.9 |
28.5 |
32.8 |
28.8 |
32.6 |
|||||||
26.0 |
10.8 |
8.8 |
29.7 |
25.1 |
29.6 |
25.5 |
29.5 |
||||||||
28.0 |
10.5 |
8.5 |
27.1 |
27.0 |
22.9 |
26.9 |
|||||||||
30.0 |
10.2 |
8.2 |
24.8 |
22.4 |
24.8 |
19.3 |
24.7 |
||||||||
32.0 |
9.9 |
7.9 |
20.6 |
22.9 |
20.5 |
22.8 |
|||||||||
34.0 |
9.6 |
9.5 |
7.6 |
19.0 |
21.8 |
18.9 |
21.1 |
18.8 |
|||||||
36.0 |
9.4 |
9.0 |
7.4 |
8.0 |
17.7 |
17.6 |
19.6 |
17.4 |
|||||||
38.0 |
9.3 |
8.8 |
7.3 |
7.8 |
16.5 |
16.3 |
|||||||||
40.0 |
9.0 |
8.5 |
7.0 |
7.5 |
15.4 |
15.2 |
|||||||||
42.0 |
8.8 |
8.3 |
6.8 |
7.3 |
14.4 |
||||||||||
44.0 |
8.7 |
8.1 |
6.7 |
7.1 |
|||||||||||
46.0 |
8.3 |
7.9 |
6.3 |
6.9 |
|||||||||||
48.0 |
8.0 |
7.8 |
6.4 |
6.0 |
6.8 |
||||||||||
50.0 |
7.7 |
7.6 |
5.9 |
5.7 |
6.6 |
4.2 |
|||||||||
52.0 |
7.5 |
7.2 |
5.3 |
5.5 |
6.2 |
4.1 |
|||||||||
54.0 |
7.3 |
6.8 |
4.7 |
5.3 |
5.8 |
4.0 |
|||||||||
56.0 |
7.2 |
6.6 |
4.2 |
5.2 |
5.6 |
3.8 |
|||||||||
58.0 |
7.0 |
6.4 |
3.8 |
5.0 |
5.4 |
3.6 |
|||||||||
60.0 |
6.3 |
3.6 |
4.9 |
5.3 |
3.4 |
||||||||||
62.0 |
6.1 |
3.5 |
5.1 |
3.3 |
|||||||||||
64.0 |
3.4 |
4.9 |
3.2 |
||||||||||||
66.0 |
3.3 |
4.8 |
3.1 |
||||||||||||
68.0 |
3.2 |
3.0 |
|||||||||||||
70.0 |
3.0 |
||||||||||||||
Main boom length(m) |
38 |
|||||||||||||||||
Fly jib Lenght(m) |
30 |
33 |
36 |
39 |
42 |
45 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
14.0 |
56.2 |
54.1 |
42.5 |
|||||||||||||||
16.0 |
51.7 |
50.8 |
41.7 |
36.5 |
31.2 |
|||||||||||||
18.0 |
43.9 |
44.6 |
39.7 |
33.6 |
29.5 |
24.5 |
||||||||||||
20.0 |
37.6 |
38.2 |
36.9 |
31.2 |
27.3 |
22.7 |
||||||||||||
22.0 |
32.7 |
33.3 |
33.8 |
29.0 |
25.3 |
21.1 |
||||||||||||
24.0 |
28.8 |
31.8 |
29.3 |
29.7 |
27.1 |
23.6 |
19.6 |
|||||||||||
26.0 |
25.6 |
29.3 |
26.0 |
28.9 |
26.5 |
25.5 |
22.2 |
18.4 |
||||||||||
28.0 |
23.0 |
26.7 |
23.4 |
26.8 |
23.7 |
26.1 |
23.7 |
25.6 |
20.8 |
17.3 |
||||||||
30.0 |
20.7 |
24.5 |
21.2 |
24.6 |
21.4 |
24.3 |
21.4 |
23.8 |
19.6 |
23.2 |
16.3 |
|||||||
32.0 |
18.6 |
22.6 |
19.2 |
22.7 |
19.5 |
22.6 |
19.5 |
22.3 |
18.6 |
21.6 |
15.4 |
18.8 |
||||||
34.0 |
20.9 |
17.5 |
21.0 |
17.9 |
20.9 |
17.9 |
20.8 |
17.5 |
20.3 |
14.6 |
17.6 |
|||||||
36.0 |
19.4 |
17.2 |
15.1 |
19.5 |
16.4 |
19.5 |
16.4 |
19.3 |
16.3 |
19.0 |
13.9 |
16.6 |
||||||
38.0 |
18.2 |
16.1 |
18.3 |
16.2 |
15.1 |
18.2 |
16.1 |
15.0 |
18.1 |
14.9 |
17.9 |
13.1 |
15.6 |
|||||
40.0 |
17.3 |
15.0 |
17.1 |
15.1 |
17.0 |
15.0 |
13.9 |
16.9 |
14.9 |
13.8 |
16.7 |
12.6 |
14.9 |
|||||
42.0 |
14.1 |
16.1 |
14.2 |
16.1 |
14.2 |
12.0 |
15.9 |
14.0 |
12.7 |
15.6 |
13.8 |
12.0 |
14.1 |
|||||
44.0 |
13.3 |
13.3 |
15.1 |
13.3 |
14.9 |
13.1 |
11.6 |
14.7 |
12.9 |
11.4 |
13.4 |
13.0 |
||||||
46.0 |
12.7 |
12.6 |
14.4 |
12.5 |
14.2 |
12.4 |
13.9 |
12.1 |
11.0 |
12.8 |
12.3 |
|||||||
48.0 |
12.0 |
11.9 |
13.2 |
11.7 |
13.1 |
11.3 |
10.3 |
12.3 |
11.6 |
|||||||||
50.0 |
11.2 |
11.0 |
12.2 |
10.7 |
11.8 |
10.9 |
||||||||||||
52.0 |
10.7 |
10.5 |
10.2 |
11.2 |
10.4 |
|||||||||||||
54.0 |
10.0 |
9.7 |
10.8 |
9.9 |
||||||||||||||
56.0 |
9.2 |
9.3 |
||||||||||||||||
58.0 |
8.8 |
8.9 |
||||||||||||||||
60.0 |
8.5 |
|||||||||||||||||
Main boom length(m) |
38 |
||||||||||||||
Fly jib Lenght(m) |
48 |
51 |
54 |
57 |
60 |
||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
Working radius(m) |
|||||||||||||||
18.0 |
21.2 |
18.9 |
|||||||||||||
20.0 |
19.5 |
17.4 |
15.1 |
12.0 |
|||||||||||
22.0 |
18.1 |
16.1 |
14.0 |
11.8 |
9.8 |
||||||||||
24.0 |
16.9 |
14.9 |
12.9 |
11.2 |
9.2 |
||||||||||
26.0 |
15.8 |
14.0 |
12.3 |
10.8 |
8.8 |
||||||||||
28.0 |
14.7 |
13.0 |
12.1 |
10.6 |
8.6 |
||||||||||
30.0 |
13.9 |
12.3 |
11.8 |
10.3 |
8.3 |
||||||||||
32.0 |
13.0 |
16.1 |
12.0 |
11.5 |
10.0 |
8.0 |
|||||||||
34.0 |
12.3 |
15.0 |
11.8 |
13.2 |
11.3 |
9.8 |
7.8 |
||||||||
36.0 |
11.7 |
14.1 |
11.5 |
12.4 |
11.0 |
10.6 |
9.5 |
9.5 |
7.5 |
||||||
38.0 |
11.5 |
13.3 |
11.3 |
11.7 |
10.8 |
10.1 |
9.3 |
9.1 |
7.3 |
8.1 |
|||||
40.0 |
11.3 |
12.6 |
11.1 |
10.9 |
10.6 |
9.8 |
9.1 |
8.8 |
7.1 |
7.8 |
|||||
42.0 |
11.1 |
11.9 |
10.9 |
10.4 |
10.4 |
9.6 |
8.9 |
8.6 |
6.9 |
7.6 |
|||||
44.0 |
11.0 |
11.2 |
10.8 |
9.8 |
10.3 |
9.3 |
8.8 |
8.3 |
6.8 |
7.3 |
|||||
46.0 |
10.7 |
10.7 |
12.1 |
10.5 |
9.7 |
10.0 |
9.2 |
8.5 |
8.2 |
6.5 |
7.2 |
||||
48.0 |
10.3 |
10.2 |
11.4 |
10.1 |
9.5 |
10.5 |
9.6 |
9.0 |
8.1 |
8.0 |
6.1 |
7.0 |
|||
50.0 |
10.0 |
9.7 |
10.8 |
9.8 |
9.3 |
9.9 |
9.3 |
8.8 |
8.2 |
7.8 |
7.8 |
5.8 |
6.8 |
||
52.0 |
9.2 |
10.2 |
9.5 |
9.1 |
9.3 |
9.0 |
8.6 |
7.8 |
7.5 |
7.6 |
5.9 |
5.5 |
6.6 |
4.3 |
|
54.0 |
8.8 |
9.7 |
8.8 |
8.9 |
8.8 |
8.3 |
7.4 |
7.3 |
7.3 |
5.3 |
5.3 |
6.3 |
4.2 |
||
56.0 |
8.5 |
9.1 |
9.4 |
8.4 |
8.7 |
7.9 |
6.9 |
7.2 |
6.9 |
4.3 |
5.2 |
5.9 |
4.1 |
||
58.0 |
8.7 |
8.1 |
8.1 |
7.6 |
6.6 |
7.1 |
6.6 |
4.2 |
5.1 |
5.6 |
4.0 |
||||
60.0 |
8.3 |
7.9 |
7.7 |
7.4 |
6.2 |
6.4 |
4.0 |
4.9 |
5.4 |
3.8 |
|||||
62.0 |
8.0 |
7.4 |
7.3 |
5.9 |
6.3 |
3.8 |
4.8 |
5.3 |
3.6 |
||||||
64.0 |
7.0 |
5.7 |
6.1 |
3.6 |
5.1 |
3.4 |
|||||||||
66.0 |
6.7 |
5.4 |
6.0 |
3.5 |
5.0 |
3.3 |
|||||||||
68.0 |
5.1 |
3.4 |
4.8 |
3.2 |
|||||||||||
70.0 |
3.3 |
3.1 |
|||||||||||||
72.0 |
3.2 |
3.0 |
|||||||||||||
74.0 |
3.0 |
||||||||||||||
Main boom length(m) |
47
|
|||||||||||||||||
Fly jib Lenght(m) |
21 |
24 |
27 |
30 |
33 |
36 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
12.0 |
60.3 |
59.0 |
59.1 |
|||||||||||||||
14.0 |
55.1 |
57.3 |
55.0 |
52.0 |
52.0 |
|||||||||||||
16.0 |
48.7 |
52.4 |
49.9 |
47.3 |
47.8 |
42.5 |
||||||||||||
18.0 |
42.3 |
44.7 |
42.5 |
42.4 |
42.9 |
40.1 |
||||||||||||
20.0 |
36.0 |
38.2 |
36.3 |
36.2 |
36.9 |
37.2 |
||||||||||||
22.0 |
31.2 |
33.1 |
31.6 |
31.5 |
32.1 |
34.4 |
||||||||||||
24.0 |
26.0 |
31.1 |
29.0 |
31.0 |
27.8 |
27.7 |
28.3 |
30.2 |
||||||||||
26.0 |
28.2 |
25.7 |
28.2 |
24.6 |
26.4 |
24.6 |
25.1 |
26.9 |
||||||||||
28.0 |
25.6 |
24.7 |
25.6 |
22.0 |
24.1 |
22.0 |
24.6 |
22.6 |
24.9 |
24.0 |
||||||||
30.0 |
23.5 |
23.5 |
18.9 |
22.1 |
19.8 |
22.5 |
20.4 |
23.2 |
21.7 |
22.2 |
||||||||
32.0 |
22.4 |
21.7 |
20.3 |
19.0 |
20.8 |
18.6 |
21.5 |
19.7 |
20.7 |
|||||||||
34.0 |
17.8 |
20.1 |
18.9 |
18.9 |
19.2 |
16.9 |
19.9 |
18.0 |
19.4 |
|||||||||
36.0 |
16.6 |
20.0 |
15.5 |
17.5 |
17.8 |
14.6 |
18.5 |
16.5 |
18.3 |
|||||||||
38.0 |
15.4 |
14.5 |
16.7 |
14.4 |
16.7 |
17.3 |
15.1 |
17.2 |
||||||||||
40.0 |
14.7 |
13.5 |
13.4 |
15.6 |
14.0 |
16.1 |
14.4 |
16.3 |
||||||||||
42.0 |
13.0 |
12.6 |
14.5 |
13.1 |
15.2 |
12.5 |
15.2 |
12.8 |
||||||||||
44.0 |
12.5 |
11.9 |
12.3 |
14.7 |
11.7 |
14.4 |
12.0 |
|||||||||||
46.0 |
11.4 |
11.7 |
11.0 |
13.5 |
11.2 |
|||||||||||||
48.0 |
11.0 |
10.5 |
12.9 |
10.6 |
||||||||||||||
50.0 |
10.5 |
9.9 |
10.0 |
|||||||||||||||
52.0 |
9.8 |
9.5 |
||||||||||||||||
54.0 |
9.0 |
|||||||||||||||||
56.0 |
8.6 |
|||||||||||||||||
Main boom length(m) |
47
|
|||||||||||||||||||||||
Fly jib Lenght(m) |
39 |
42 |
45 |
48 |
51 |
54 |
57 |
60 |
||||||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||||||||
16.0 |
36.6 |
31.2 |
||||||||||||||||||||||
18.0 |
34.0 |
29.8 |
24.8 |
21.4 |
||||||||||||||||||||
20.0 |
31.5 |
27.5 |
22.9 |
19.7 |
17.6 |
15.3 |
12.1 |
|||||||||||||||||
22.0 |
29.3 |
25.5 |
21.2 |
18.3 |
16.3 |
14.1 |
11.8 |
9.8 |
||||||||||||||||
24.0 |
27.3 |
23.8 |
19.8 |
17.0 |
15.0 |
13.0 |
11.3 |
9.3 |
||||||||||||||||
26.0 |
25.6 |
22.3 |
18.6 |
15.9 |
14.1 |
12.4 |
10.9 |
8.9 |
||||||||||||||||
28.0 |
24.0 |
20.9 |
17.4 |
14.8 |
13.1 |
12.2 |
10.7 |
8.7 |
||||||||||||||||
30.0 |
21.6 |
21.6 |
19.7 |
15.4 |
14.0 |
12.4 |
11.9 |
10.4 |
8.4 |
|||||||||||||||
32.0 |
19.6 |
20.2 |
18.6 |
19.6 |
14.7 |
18.7 |
13.1 |
12.1 |
11.6 |
10.1 |
8.1 |
|||||||||||||
34.0 |
18.0 |
18.9 |
17.6 |
18.4 |
13.9 |
17.5 |
12.4 |
16.0 |
11.8 |
11.3 |
9.8 |
7.8 |
||||||||||||
36.0 |
16.5 |
17.7 |
16.4 |
17.2 |
13.2 |
16.5 |
11.7 |
14.9 |
11.6 |
13.1 |
11.1 |
9.6 |
7.6 |
|||||||||||
38.0 |
15.1 |
16.8 |
15.0 |
16.3 |
12.6 |
15.6 |
11.5 |
14.1 |
11.3 |
12.3 |
10.8 |
10.5 |
9.3 |
7.3 |
||||||||||
40.0 |
14.0 |
15.9 |
13.9 |
15.3 |
12.0 |
14.8 |
11.4 |
13.2 |
11.2 |
11.6 |
10.7 |
10.2 |
9.2 |
9.2 |
7.2 |
8.2 |
||||||||
42.0 |
12.4 |
15.0 |
12.8 |
14.5 |
11.6 |
14.1 |
11.2 |
12.5 |
11.0 |
10.9 |
10.5 |
9.8 |
9.0 |
8.8 |
7.0 |
7.8 |
||||||||
44.0 |
14.1 |
11.7 |
11.9 |
13.8 |
11.0 |
13.3 |
11.0 |
11.8 |
10.8 |
10.3 |
10.3 |
9.6 |
8.8 |
8.6 |
6.8 |
7.6 |
||||||||
46.0 |
13.3 |
11.0 |
11.3 |
13.0 |
10.6 |
10.1 |
12.6 |
10.4 |
10.8 |
11.1 |
10.6 |
9.9 |
10.1 |
9.4 |
8.6 |
8.4 |
6.6 |
7.4 |
||||||
48.0 |
12.6 |
10.4 |
12.3 |
10.0 |
12.0 |
9.9 |
10.5 |
10.6 |
10.3 |
9.7 |
9.8 |
9.2 |
8.3 |
8.2 |
6.3 |
7.2 |
||||||||
50.0 |
12.0 |
9.8 |
11.6 |
9.5 |
11.3 |
9.2 |
10.1 |
10.1 |
9.7 |
9.9 |
9.5 |
9.4 |
9.0 |
8.6 |
7.9 |
8.0 |
5.9 |
7.0 |
||||||
52.0 |
9.2 |
11.0 |
8.9 |
10.8 |
8.8 |
9.7 |
9.0 |
9.6 |
9.3 |
8.8 |
9.1 |
8.8 |
8.5 |
7.6 |
7.8 |
5.6 |
6.8 |
|||||||
54.0 |
8.7 |
10.5 |
8.4 |
10.3 |
8.3 |
9.1 |
8.5 |
9.4 |
9.2 |
8.3 |
8.9 |
8.7 |
8.1 |
7.4 |
7.7 |
5.5 |
5.4 |
6.7 |
||||||
56.0 |
8.3 |
8.0 |
7.9 |
8.8 |
8.1 |
8.8 |
7.9 |
8.8 |
8.3 |
7.6 |
7.3 |
7.3 |
4.9 |
5.3 |
6.3 |
4.3 |
||||||||
58.0 |
7.9 |
7.6 |
7.5 |
8.4 |
7.6 |
8.4 |
7.4 |
8.6 |
7.9 |
7.1 |
7.1 |
6.9 |
4.4 |
5.1 |
5.9 |
4.2 |
||||||||
60.0 |
7.2 |
7.0 |
7.1 |
8.2 |
6.9 |
7.7 |
6.7 |
7.0 |
6.7 |
4.3 |
5.0 |
5.7 |
4.1 |
|||||||||||
62.0 |
6.7 |
6.8 |
7.9 |
6.6 |
7.4 |
6.4 |
6.4 |
4.2 |
4.9 |
5.4 |
4.0 |
|||||||||||||
64.0 |
6.4 |
6.2 |
7.3 |
6.1 |
6.3 |
4.0 |
5.3 |
3.8 |
||||||||||||||||
66.0 |
6.1 |
5.9 |
5.8 |
6.2 |
3.8 |
5.2 |
3.6 |
|||||||||||||||||
68.0 |
5.6 |
5.5 |
5.5 |
3.6 |
5.0 |
3.4 |
||||||||||||||||||
70.0 |
5.3 |
5.1 |
3.5 |
4.9 |
3.3 |
|||||||||||||||||||
72.0 |
4.8 |
3.4 |
3.2 |
|||||||||||||||||||||
74.0 |
3.3 |
3.1 |
||||||||||||||||||||||
76.0 |
3.2 |
3.0 |
||||||||||||||||||||||
78.0 |
3.0 |
|||||||||||||||||||||||
Main boom length(m) |
59
|
|||||||||||||||||
Fly jib Lenght(m) |
21 |
24 |
27 |
30 |
33 |
36 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
12.0 |
42.0 |
|||||||||||||||||
14.0 |
41.4 |
41.2 |
40.1 |
39.9 |
39.7 |
|||||||||||||
16.0 |
37.5 |
37.2 |
36.3 |
36.1 |
35.9 |
28.1 |
||||||||||||
18.0 |
34.2 |
33.9 |
33.2 |
33.0 |
32.8 |
28.1 |
||||||||||||
20.0 |
31.5 |
31.2 |
30.6 |
30.2 |
30.1 |
28.1 |
||||||||||||
22.0 |
29.3 |
28.9 |
28.2 |
27.9 |
27.8 |
27.6 |
||||||||||||
24.0 |
27.5 |
26.9 |
26.4 |
26.0 |
25.8 |
25.6 |
||||||||||||
26.0 |
25.6 |
24.3 |
25.3 |
24.5 |
24.7 |
24.4 |
24.2 |
23.9 |
||||||||||
28.0 |
22.5 |
22.1 |
22.7 |
23.3 |
22.2 |
22.9 |
22.5 |
22.4 |
||||||||||
30.0 |
21.0 |
21.2 |
21.6 |
20.7 |
21.5 |
20.1 |
20.3 |
19.7 |
20.5 |
|||||||||
32.0 |
19.6 |
19.8 |
19.6 |
19.3 |
19.7 |
18.7 |
19.2 |
18.4 |
19.0 |
18.9 |
||||||||
34.0 |
18.5 |
18.7 |
18.2 |
16.9 |
17.5 |
17.8 |
17.2 |
17.6 |
17.7 |
|||||||||
36.0 |
17.6 |
17.6 |
17.1 |
16.5 |
16.5 |
16.2 |
16.4 |
16.7 |
||||||||||
38.0 |
12.5 |
16.5 |
16.2 |
15.6 |
15.3 |
15.2 |
15.2 |
15.8 |
||||||||||
40.0 |
11.8 |
11.9 |
15.4 |
14.8 |
14.5 |
14.0 |
14.9 |
|||||||||||
42.0 |
11.1 |
11.1 |
14.7 |
10.9 |
14.1 |
13.8 |
14.1 |
|||||||||||
44.0 |
10.5 |
10.3 |
10.4 |
13.4 |
9.9 |
13.0 |
13.2 |
|||||||||||
46.0 |
10.0 |
9.7 |
9.8 |
9.3 |
12.5 |
9.1 |
12.5 |
8.9 |
||||||||||
48.0 |
9.0 |
9.1 |
8.8 |
11.9 |
8.6 |
11.8 |
8.4 |
|||||||||||
50.0 |
8.5 |
8.3 |
8.2 |
11.1 |
7.9 |
|||||||||||||
52.0 |
8.1 |
7.8 |
7.7 |
7.4 |
||||||||||||||
54.0 |
7.5 |
7.2 |
6.9 |
|||||||||||||||
56.0 |
6.8 |
6.5 |
||||||||||||||||
58.0 |
6.5 |
6.1 |
||||||||||||||||
60.0 |
5.8 |
|||||||||||||||||
Main boom length(m) |
59
|
|||||||||||||||||||||||
Fly jib Lenght(m) |
39 |
42 |
45 |
48 |
51 |
54 |
57 |
60 |
||||||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||||||||
16.0 |
34.3 |
|||||||||||||||||||||||
18.0 |
31.6 |
28.1 |
25.1 |
21.7 |
||||||||||||||||||||
20.0 |
28.9 |
27.9 |
23.2 |
20.0 |
17.9 |
|||||||||||||||||||
22.0 |
27.4 |
25.8 |
21.5 |
18.5 |
16.5 |
13.9 |
11.5 |
|||||||||||||||||
24.0 |
25.4 |
24.0 |
20.1 |
17.2 |
15.2 |
12.9 |
11.4 |
9.4 |
||||||||||||||||
26.0 |
23.7 |
22.5 |
18.7 |
16.0 |
14.2 |
12.7 |
11.2 |
9.2 |
||||||||||||||||
28.0 |
22.0 |
21.1 |
17.5 |
15.0 |
13.2 |
12.3 |
10.8 |
8.8 |
||||||||||||||||
30.0 |
20.2 |
19.8 |
16.5 |
14.1 |
12.6 |
12.1 |
10.6 |
8.6 |
||||||||||||||||
32.0 |
18.7 |
18.7 |
15.5 |
13.2 |
12.3 |
11.8 |
10.3 |
8.3 |
||||||||||||||||
34.0 |
17.4 |
17.3 |
17.7 |
16.8 |
14.7 |
12.4 |
12.0 |
11.5 |
10.0 |
8.0 |
||||||||||||||
36.0 |
16.2 |
16.3 |
16.5 |
15.9 |
14.0 |
15.5 |
11.9 |
11.7 |
11.2 |
9.7 |
7.7 |
|||||||||||||
38.0 |
15.1 |
15.3 |
15.1 |
14.9 |
13.2 |
14.7 |
11.7 |
14.2 |
11.5 |
11.0 |
9.5 |
7.5 |
||||||||||||
40.0 |
14.1 |
14.5 |
14.0 |
14.1 |
12.6 |
13.9 |
11.5 |
13.4 |
11.3 |
12.5 |
10.8 |
10.4 |
9.3 |
7.3 |
||||||||||
42.0 |
12.8 |
13.8 |
12.9 |
13.3 |
12.1 |
13.1 |
11.3 |
12.7 |
11.1 |
11.7 |
10.6 |
10.3 |
9.1 |
9.3 |
7.1 |
8.3 |
||||||||
44.0 |
12.2 |
13.1 |
12.0 |
12.6 |
11.6 |
12.4 |
10.8 |
12.0 |
10.6 |
11.0 |
10.1 |
10.0 |
8.9 |
9.0 |
6.9 |
8.8 |
||||||||
46.0 |
12.4 |
11.4 |
12.1 |
11.0 |
11.8 |
10.1 |
11.3 |
9.9 |
10.4 |
9.4 |
9.8 |
8.7 |
8.8 |
6.7 |
7.8 |
|||||||||
48.0 |
11.7 |
8.2 |
11.4 |
10.5 |
11.2 |
9.4 |
10.8 |
9.2 |
10.0 |
8.7 |
9.5 |
8.5 |
8.5 |
6.5 |
7.5 |
|||||||||
50.0 |
11.0 |
7.7 |
10.8 |
7.2 |
10.0 |
10.7 |
8.9 |
10.3 |
8.7 |
9.8 |
8.2 |
9.3 |
8.1 |
8.3 |
6.1 |
7.3 |
||||||||
52.0 |
10.5 |
7.1 |
10.3 |
6.8 |
10.2 |
7.0 |
8.4 |
9.8 |
8.2 |
9.6 |
7.7 |
9.1 |
7.1 |
8.1 |
5.8 |
7.1 |
||||||||
54.0 |
10.0 |
6.7 |
9.8 |
6.4 |
9.8 |
6.6 |
9.4 |
6.3 |
7.7 |
9.4 |
7.2 |
8.9 |
6.7 |
7.9 |
5.5 |
6.9 |
||||||||
56.0 |
6.3 |
9.2 |
6.0 |
9.3 |
6.2 |
9.3 |
5.9 |
9.3 |
5.7 |
6.7 |
8.8 |
6.2 |
7.8 |
5.3 |
6.8 |
|||||||||
58.0 |
5.9 |
5.6 |
8.9 |
5.8 |
9.0 |
5.5 |
9.0 |
5.3 |
6.4 |
8.5 |
6.1 |
5.9 |
7.5 |
5.2 |
6.5 |
|||||||||
60.0 |
5.6 |
5.3 |
8.5 |
5.5 |
8.7 |
5.1 |
8.7 |
4.9 |
8.2 |
5.7 |
5.7 |
7.2 |
5.1 |
5.1 |
6.2 |
|||||||||
62.0 |
5.3 |
4.9 |
5.0 |
8.3 |
4.8 |
8.3 |
4.6 |
7.8 |
5.4 |
6.8 |
4.5 |
4.9 |
5.8 |
4.3 |
||||||||||
64.0 |
5.0 |
4.6 |
4.8 |
4.5 |
8.1 |
4.3 |
7.6 |
5.0 |
6.6 |
4.4 |
4.8 |
5.6 |
4.2 |
|||||||||||
66.0 |
4.4 |
4.5 |
4.2 |
4.0 |
7.3 |
4.7 |
6.3 |
4.2 |
5.3 |
4.0 |
||||||||||||||
68.0 |
4.2 |
4.0 |
3.8 |
7.3 |
4.4 |
6.1 |
4.1 |
5.1 |
3.9 |
|||||||||||||||
70.0 |
3.7 |
3.5 |
4.1 |
3.9 |
4.9 |
3.7 |
||||||||||||||||||
72.0 |
3.5 |
3.3 |
3.9 |
3.7 |
4.8 |
3.5 |
||||||||||||||||||
74.0 |
3.0 |
3.7 |
3.5 |
3.3 |
||||||||||||||||||||
76.0 |
3.5 |
3.4 |
3.2 |
|||||||||||||||||||||
78.0 |
3.3 |
3.3 |
3.1 |
|||||||||||||||||||||
80.0 |
3.3 |
3.1 |
||||||||||||||||||||||
82.0 |
3.0 |
|||||||||||||||||||||||
84.0 |
2.9 |
|||||||||||||||||||||||
Main boom length(m) |
62
|
|||||||||||||||||
Fly jib Lenght(m) |
21 |
24 |
27 |
30 |
33 |
36 |
||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||
12.0 |
42.8 |
|||||||||||||||||
14.0 |
37.1 |
35.2 |
38.2 |
35.2 |
28.1 |
|||||||||||||
16.0 |
32.8 |
31.7 |
34.6 |
31.7 |
28.1 |
28.1 |
||||||||||||
18.0 |
29.2 |
28.9 |
31.6 |
28.9 |
28.1 |
28.1 |
||||||||||||
20.0 |
26.4 |
26.6 |
29.1 |
26.6 |
26.5 |
26.1 |
||||||||||||
22.0 |
23.9 |
24.5 |
26.9 |
24.5 |
24.4 |
24.2 |
||||||||||||
24.0 |
21.9 |
22.8 |
25.1 |
22.8 |
22.6 |
22.4 |
||||||||||||
26.0 |
23.8 |
21.2 |
23.5 |
21.2 |
21.1 |
20.8 |
||||||||||||
28.0 |
22.0 |
20.0 |
22.2 |
22.2 |
20.0 |
19.7 |
19.4 |
|||||||||||
30.0 |
20.6 |
20.8 |
20.6 |
19.7 |
18.8 |
19.2 |
18.5 |
18.2 |
||||||||||
32.0 |
19.3 |
19.5 |
18.7 |
18.4 |
17.0 |
18.0 |
17.1 |
18.7 |
16.8 |
18.2 |
||||||||
34.0 |
18.1 |
18.3 |
17.3 |
16.3 |
16.8 |
15.9 |
17.5 |
15.6 |
17.0 |
|||||||||
36.0 |
17.3 |
17.3 |
16.3 |
15.9 |
14.7 |
16.5 |
14.7 |
16.1 |
||||||||||
38.0 |
16.2 |
15.4 |
14.9 |
13.8 |
15.6 |
14.1 |
15.1 |
|||||||||||
40.0 |
11.5 |
16.0 |
14.7 |
14.2 |
14.8 |
12.7 |
14.3 |
|||||||||||
42.0 |
10.9 |
10.9 |
14.0 |
13.4 |
14.0 |
13.5 |
||||||||||||
44.0 |
10.3 |
10.1 |
9.9 |
12.8 |
9.0 |
13.1 |
12.9 |
|||||||||||
46.0 |
9.8 |
9.5 |
9.3 |
12.2 |
8.5 |
12.4 |
8.5 |
12.2 |
||||||||||
48.0 |
8.9 |
8.7 |
8.1 |
11.8 |
8.0 |
11.6 |
7.7 |
|||||||||||
50.0 |
8.1 |
7.6 |
7.5 |
10.9 |
7.1 |
|||||||||||||
52.0 |
7.7 |
7.0 |
7.0 |
10.4 |
6.7 |
|||||||||||||
54.0 |
6.6 |
6.6 |
6.3 |
|||||||||||||||
56.0 |
6.3 |
6.2 |
5.9 |
|||||||||||||||
58.0 |
5.8 |
5.5 |
||||||||||||||||
60.0 |
5.1 |
|||||||||||||||||
62.0 |
4.9 |
|||||||||||||||||
Main boom length(m) |
62
|
|||||||||||||||||||||||
Fly jib Lenght(m) |
39 |
42 |
45 |
48 |
51 |
54 |
57 |
60 |
||||||||||||||||
Fly jib mounting angle(¡ã) |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã
|
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
85¡ã |
75¡ã |
65¡ã |
Working radius(m) |
||||||||||||||||||||||||
16.0 |
30.0 |
|||||||||||||||||||||||
18.0 |
28.1 |
28.1 |
25.2 |
|||||||||||||||||||||
20.0 |
25.9 |
25.7 |
23.2 |
20.1 |
17.9 |
|||||||||||||||||||
22.0 |
23.9 |
23.7 |
21.5 |
18.6 |
16.5 |
13.9 |
11.6 |
|||||||||||||||||
24.0 |
22.2 |
21.9 |
20.1 |
17.2 |
15.2 |
13.0 |
11.5 |
9.5 |
||||||||||||||||
26.0 |
20.6 |
20.4 |
18.8 |
16.1 |
14.2 |
12.7 |
11.2 |
9.2 |
||||||||||||||||
28.0 |
19.2 |
19.0 |
17.6 |
15.0 |
13.2 |
12.3 |
10.8 |
8.8 |
||||||||||||||||
30.0 |
18.1 |
17.9 |
16.6 |
14.1 |
12.6 |
12.1 |
10.6 |
8.6 |
||||||||||||||||
32.0 |
17.0 |
16.7 |
15.6 |
13.2 |
12.3 |
11.8 |
10.3 |
8.3 |
||||||||||||||||
34.0 |
16.1 |
16.6 |
15.8 |
16.2 |
14.8 |
12.5 |
12.0 |
11.5 |
10.0 |
8.0 |
||||||||||||||
36.0 |
15.2 |
15.6 |
14.9 |
15.2 |
13.8 |
11.8 |
11.8 |
11.3 |
9.8 |
7.8 |
||||||||||||||
38.0 |
14.5 |
14.8 |
14.2 |
14.3 |
12.8 |
14.1 |
11.1 |
13.7 |
11.5 |
11.0 |
9.5 |
7.5 |
||||||||||||
40.0 |
13.8 |
14.0 |
13.4 |
13.5 |
12.0 |
13.2 |
10.5 |
12.8 |
10.5 |
12.5 |
10.0 |
9.3 |
7.3 |
|||||||||||
42.0 |
12.9 |
13.2 |
12.8 |
12.8 |
11.5 |
12.5 |
10.0 |
12.1 |
9.7 |
11.8 |
9.2 |
10.5 |
8.6 |
9.5 |
7.1 |
|||||||||
44.0 |
11.0 |
12.5 |
12.0 |
12.1 |
11.0 |
11.9 |
9.6 |
11.4 |
9.1 |
11.1 |
8.6 |
10.1 |
7.9 |
9.1 |
6.9 |
8.1 |
||||||||
46.0 |
12.0 |
10.0 |
11.6 |
10.5 |
11.2 |
9.0 |
10.8 |
8.4 |
10.5 |
7.9 |
9.8 |
7.4 |
8.8 |
6.7 |
7.8 |
|||||||||
48.0 |
11.3 |
10.9 |
10.1 |
10.7 |
8.7 |
10.3 |
7.8 |
10.1 |
7.3 |
9.6 |
6.8 |
8.6 |
6.2 |
7.6 |
||||||||||
50.0 |
10.7 |
6.9 |
10.5 |
10.2 |
8.3 |
9.8 |
7.3 |
9.8 |
6.8 |
9.3 |
6.3 |
8.3 |
5.7 |
7.3 |
||||||||||
52.0 |
10.2 |
6.4 |
10.0 |
6.1 |
9.8 |
7.9 |
9.7 |
6.9 |
9.7 |
6.4 |
9.2 |
5.9 |
8.2 |
5.4 |
7.2 |
|||||||||
54.0 |
10.0 |
6.0 |
9.5 |
5.7 |
9.3 |
5.9 |
9.5 |
6.6 |
9.5 |
6.1 |
9.0 |
5.7 |
8.0 |
5.2 |
7.0 |
|||||||||
56.0 |
5.7 |
9.0 |
5.4 |
8.9 |
5.6 |
9.3 |
5.3 |
6.4 |
9.3 |
5.9 |
8.8 |
5.5 |
7.8 |
5.0 |
6.8 |
|||||||||
58.0 |
5.3 |
8.6 |
4.9 |
8.6 |
5.1 |
9.1 |
4.8 |
9.1 |
4.6 |
5.6 |
8.6 |
5.2 |
7.6 |
4.8 |
6.6 |
|||||||||
60.0 |
4.9 |
4.6 |
8.2 |
4.8 |
8.8 |
4.5 |
8.8 |
4.3 |
8.3 |
5.7 |
5.0 |
7.3 |
4.6 |
6.3 |
||||||||||
62.0 |
4.6 |
4.3 |
4.5 |
8.4 |
4.2 |
8.4 |
4.0 |
7.9 |
5.4 |
6.9 |
4.5 |
4.3 |
5.9 |
4.3 |
||||||||||
64.0 |
4.4 |
4.1 |
4.2 |
4.0 |
8.1 |
3.8 |
7.6 |
5.1 |
6.6 |
4.4 |
4.2 |
5.6 |
4.2 |
|||||||||||
66.0 |
3.8 |
4.0 |
3.7 |
7.9 |
3.5 |
7.4 |
4.8 |
6.4 |
4.3 |
5.4 |
4.1 |
|||||||||||||
68.0 |
3.6 |
3.7 |
3.5 |
3.3 |
7.3 |
4.5 |
6.3 |
4.2 |
5.3 |
4.0 |
||||||||||||||
70.0 |
3.5 |
3.2 |
3.0 |
4.2 |
6.1 |
4.0 |
5.1 |
3.8 |
||||||||||||||||
72.0 |
2.9 |
2.7 |
3.9 |
6.0 |
3.8 |
5.0 |
3.6 |
|||||||||||||||||
74.0 |
2.5 |
3.7 |
3.6 |
4.9 |
3.4 |
|||||||||||||||||||
76.0 |
2.0 |
3.5 |
3.5 |
3.3 |
||||||||||||||||||||
78.0 |
3.4 |
3.4 |
3.2 |
|||||||||||||||||||||
80.0 |
3.3 |
3.1 |
||||||||||||||||||||||
82.0 |
3.2 |
3.0 |
||||||||||||||||||||||
84.0 |
3.0 |
|||||||||||||||||||||||
Note: Under main boom with tip boom working condition, the lifting capacity on tip boom is the same as that on main boom in the same radius, but it can not exceed 25t. |
 |
Download Infomation |
