LTU90D/LTUH90D Paver

LTU90D/LTUH90D Paver
LTU90D/LTUH90D asphalt Crawler Paver is a road surface paving equipment based on research on technical feature of the pavers all around the world, specially developed for China market. Major used in asphalt compound material paving, and also used for materials of stabilization earth and RCC materials. It adopts advanced technology from modern overseas well-known brand, is a hi-tech product with mechanical-electrical-hydraulic integration. Advanced performance, logical design, and outstanding processing. Major components are all from world well-known brand, supported with Zoomlion's processing and manufacture capability and rigid quality control system, the technology and performance of the product had reached the leading level of the world. Top quality, is the ideal equipment for road construction.

Major Technical Feature
1. All major mechanism are independent hydraulic driven, auto control, ensures stability during the paving process, minimize the factor which affect the accuracy of the paving, keeps high accuracy of the paving.
2. Hydraulic pump for walking, auger, temper and other with bid loading and concussion all adopts international well-known heavy series variable column pump, improved the system's loading capability, ensures stability and continuity during the paving process, less heat emission, more efficient.
3. Balance, walking, material paved by auger, material delivered to cutter, all applied with close response control theory, testing the work parameter through sensor, feedback to controller, realize accurate auto control.
4. Walking system adopts exclusive walking controller original imported from Germany, ensures straight and even speed walking and stable swerve, accurate paving, fully meet paving requirement of the asphalt layer of highway.
5. Deutz 6 cylinder center cooling engine original imported from Germany, powerful, suitable for any paving situation, meet requirement from tableland.
6. Global purchasing, all top hydraulic and electrical components, decelerator, axle, ensures the best quality among the same type paver, and highest reliability.
7. Auto lubrication system controlled by computer, ensures sufficient lubrication in all mechanism, minimize the daily maintenance.

Item	Parameter
TYPE	LTU90D/LTUH90D
Basic paving width	3m(mechanically pieced screed)
Max.paving width	9m(mechanically pieced screed)
Max.paving width	300mm
Engine type	DEUTZ BF6M1013
Engine power	133kw
Theortical productivity	800t/h
Paving speed	0-16m/min (stepless adjustment)
Traveling speed	0-3.3m/min (stepless adjustment)
Auger revolution	0-170rpm (stepless adjustment)
Conveyor speed	17m/min
Tamper stroke	Front tamper 0/2/4/5/7/8 mm (six grade adjustment)
Tamper stroke	Rear tamper 4 mm (six grade adjustment)
Tamper frequency	0-25Hz (stepless adjustment)
Vibrator frequency	0-50 Hz (mechanically)
Paving smoothness	≤2mm/3m (Asphalt surface)
Compactness	≥90%
Heating	Burning with alkylate
Total weight	22t(With basic screed)/25t(Total weight)

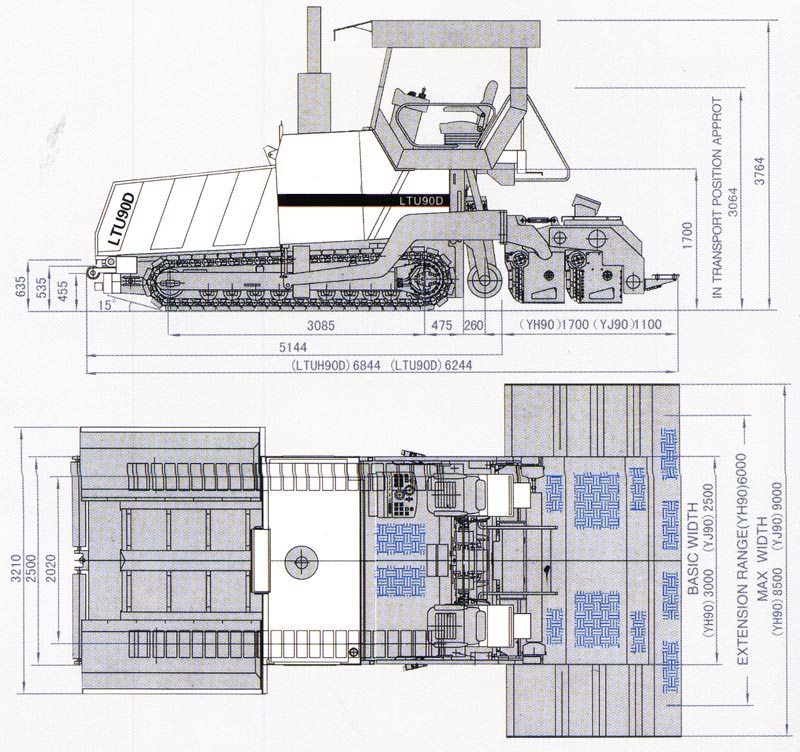

Overall dimension	6778mm×3000mm×3764mm

	Electrical Components
	Original imported electromagnetism valve, potentiometer and other electrical components, strong support for Zoomlion paver's reliability and performance.
	Hydraulic Complement
	Original imported hydraulic valve, rubber pipeline, joint and other hydraulic complements, strong support for Zoomlion paver's reliability and performance.
	Helix Lamina, Anti-grind Soleplate
	Made from hardness and anti-grind materials, screed, helix lamina, and soleplate are endurable, reliable.
	Walding Driving
	With motor, torque decelerator and break application integrated driving equipment, walking system is efficient and strong capability of loading.
	Hydraulic Components
	Hydraulic system adopts heavy load system components, large loading capability, efficient transmission, and high reliability.
	Engine
	Equipped with water-cooling, turbine pressure engine, strong and powerful. LTU120A equipped with brand new engine EMR2 management system.
	Fan Cooler
	Adopting major radiator and supplementary radiator two radiation system, more efficient on radiation, ensures no overheat under hot environment and continuous working.
	New Hydraulic Telescoped Screed
	Optimized designed screed, even under hard situation, could ensure hardness of the screed. Side tension mechanism of the screed could auto adjust according to the flex of the screed, improved the horizontal hardness of the screed a lot, even under the situation of strong resistance, the screed will not be bent.
	Controller
	Walking system adopts exclusive walking controller exclusive for large paver, efficiently ensures straight and even speed of the walking and balanced swerve, keep high accuracy of the paving, fully meet the paving requirement of the asphalt layer of the highway.
	Balance System
	Standard balance system is two vertical and one horizontal, high accuracy and reliability, applied for any situation. General controller joint, clients could choose domestic or imported balance system, or equip the latest sensor ultrasonic balance girder or laser scanner balance control system.
