QY16H431
1. Main Characteristics
(1) This type of truck crane, integrating its elegant appearance, bright color and outstanding performance, has become the classic product in light-duty truck crane.

(2) The crane adopts a standard-type and self-made special-purpose chassis with a full-width driver’s cab. The chassis drive type is 6×4.
(3) The crane adopts Weifang Diesel Deutz engine which is specially developed for those cranes that often travel at low speed. This kind of engine not only can produce large output torque when it starts and increase the traveling speed quickly, but also has excellent starting performance and good gradeability.
(4) The 6-speed gearbox boasts such advantages as large load-bearing capacity, low noise and long service life as well as maneuverable gear-shifting.
(5) The crane is fitted with a 30.8m long hexagon-section boom which is made of high-strength steel, so the boom has strong resistance to bending and torsion. The distinctively-designed circular arc sliding block (having obtained a national patent) makes the stress distributed more evenly, the load carrying capacity stronger, and the adjustment easier. The local rigidity in boom supporting point is good, which has improved the lifting capacity on boom with same thickness and achieved the goal of greater lifting capacity on lighter boom.

(6) Thanks to the free-falling function of main winch and free-swing function of slewing mechanism, the energy consumption on our truck crane has been reduced and the working efficiency has been improved.
(7) The manual proportional control incorporates the advantages of traditional lever control and electric-hydraulic pilot control. It not only reserves the merits of safety & reliability of original control structure and low maintenance cost, but also realizes that the working speed of actuating mechanism is only proportional to the opening degree of control valves rather than affected by the load. Furthermore, it has improved the speed-regulation performance.

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		16000
	Max. load moment of basic boom kN.m		710
	Max. load moment with max. main boom length kN.m		408

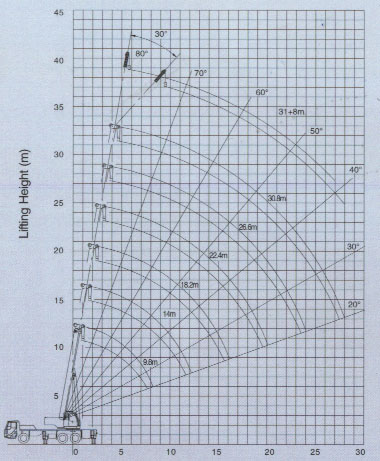

	Max. lifting height of main boom m		31.08	Deformation of boom is not taken into consideration.
	Max. lifting height of fly jib m		38.5
Working speed	Max. speed of single rope on main winch m/min		120	The 4 th layer of drum
	Max. speed of single rope on auxiliary winch m/min		90
	Derricking time of boom s		55
	Telescopic time of boom s		70
	Slewing speed r/min		0~2
Traveling specification	Max. traveling speed km/h		70
	Max. gradeability %		28
	Min. turning circle diameter m		20
	Min. ground clearance mm		250
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691-2005 (Stage III)
	Oil consumption per hundred kilometers L		38
Mass specification	Deadweight of crane in traveling condition kg		23000
	Complete vehicle kerb mass kg		22805
	Front axle load kg		6200
	Rear axle load kg		16800
Dimension specification	Overall dimensions (L×W×H) mm		12050×2500×3400

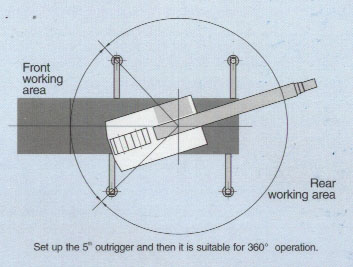

	Base on outriggers m		4.95
	Distance between outriggers m		5.4
	Main boom length m		9.8~30.8
	Main boom angle °		-2 ～ 80
	Fly jib length m		7.5
	Offset angle of fly jib °		0 , 30
Chassis	Model		ZLJ5261
	Class		II
	Engine	Model	EuroⅢ(WP6.240)
		Rated power kW/r/min	176 /2500
		Max. output torque N.m/r/min	800 /1400 ～ 1600

	New sliding design for bracing support, side hydraulic luck
	Side hydraulic luck, avoiding heavy crash during the operation, ensures security.
	Anti-slew steel wire
	Longevity of service for the anti-slew steel wire, ensures the security of the lifting.
	Moment Limiter and Display
	Automatic moment limiter has the function of self testing and alarming.
	Major boom head and slider
	1、Hexagon major boom adopts low alloy and high strength structure steel 2、The slider with national patent, flexible operation, logical strength distribution. Strong lifting capability.
	Hydraulic Motor
	1、Supercharged inter-cooled engine, capable for working at place over 4500 meters altitude. 2、International dominant variable amplitude mechanism, to make the mast close or leave the machine in parallel. 3、Three section, foldable, box shape design mast, with outstanding intensity and strength. 4、The hydraulic system is efficient, energy saving, accurate on the ratio operation, load transmission, load sensitivity control.
