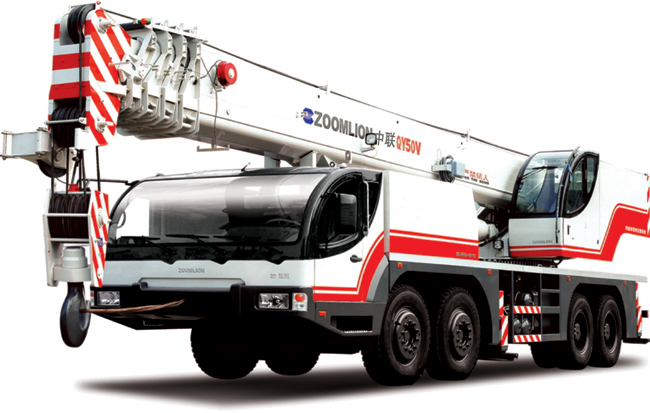

QY50V532 Characteristics (1) The crane boasts elegant appearance, which presents a perfect combination of technology and aesthetics. (2) The crane adopts a new-concept and self-made special-purpose chassis with a full-width driver's cab. The chassis drive type is 8¡Á4. (3) The crane adopts WEICHAI Steyr engine which is specially developed for those cranes that often travel at low speed. This kind of engine not only can produce large output torque when it starts and increase the traveling speed quickly, but also has excellent starting performance and good gradeability. In addition, the crane can be fitted with Cummins engine according to customers' demands. (4) The crane is equipped with 9-speed gearbox which changes gear smoothly and is of simple structure and makes maintenance convenient. (5) The crane is fitted with a 42m long hexagon-section boom which is made of high-strength steel, so the boom has strong resistance to bending and torsion. The distinctively-designed circular arc sliding block (having obtained a national patent) makes the stress distributed more evenly, the load carrying capacity stronger, and the adjustment easier. The local rigidity in boom supporting point is good, which has improved the lifting capacity on boom with same thickness and achieved the goal of greater lifting capacity on lighter boom. (6) The boom applies an arbitrary telescopic type which can improve the stability of crane when it works with large working radius. (When boom telescopes in different sequence, the position of boom's centre of gravity is adjusted accordingly.) (7) The pilot proportional control has the functions of pressure compensation and load feedback, which make th e working speed not be affected by the change of load , and have good stability as well as little power loss. Furthermore, the operator ' s cab is equipped with imported pilot control handle which not only makes various motions have excellent jogging performance and reduce the labor intensity effectively, but also can carry out all kinds of combination motions quickly and improve working efficiency dramatically. (8) The slewing mechanism has the functions of protecting the crane automatically when the crane is overloaded, reducing the impacts, and activating hydraulic brake when the hydraulic control valve is in neutral position as well as free swing. In addition, it can automatically make boom, wire rope and lifted load slew simultaneously, and minimize the sway of boom and load while the crane starts or stops quickly, and accelerates or decelerates slewing. (9) The outrigger beam boasts such advantages as large outrigger span and outstanding stability. Moreove r, this kind of outrigger has half-extended working mode, so the working range is extended. (10) The 5 th outrigger is fitted with warning device (acoustic alarm), which can make operator know about the retracting state of the 5th outrigger so as to enhance safety performance of the crane. (11) The crane is fitted with outrigger lamps which can facilitate operation at night. (12) The cran e is equipped with high-quality load moment limiter which has such advantages as great precision and complete information shown on the display. In this way, the safe lifting operation can be guaranteed. |
Table of Main Technica Performance and Specifications |
Item |
Value |
Remarks |
||
Working performance specification |
Max. rated total lifting capacity kg |
55000 |
||
Max. load moment of basic boom kN.m |
1764 |
1470(Outrigger beam half extended) |
||
Max. load moment with max. main boom length kN.m |
940.8 |
793.8(Outrigger beam half extended) |
||
Max. lifting height of basic boom m |
11.6 |
|||
Max. lifting height of main boom m |
42.1 |
Deformation of boom is not taken into consideration |
||
Max. lifting height of fly jib m |
58.3 |
|||
Working speed |
Max. speed of single rope on main winch m/min |
130 |
The 4 th layer of drum |
|
Max. speed of single rope on auxiliary winch m/min |
72 |
The 2 nd layer of drum |
||
Derricking time of boom s |
50 |
|||
Telescopic time of boom s |
95 |
|||
Slewing speed r/min |
0~2 |
|||
Traveling specification |
Max. traveling speed km/h |
76 |
||
Max. gradeability % |
32 |
|||
Min. turning circle diameter m |
24 |
|||
Min. ground clearance mm |
260 |
|||
Limits for exhaust pollutants and smoke |
Comply with related standards |
GB3847-2005 GB17691-2005 (Stage ¢ó ) |
||
Oil consumption per hundred kilometers L |
48 |
|||
Mass specification |
Deadweight of crane in traveling condition kg |
40600 |
||
Complete vehicle kerb mass kg |
40470 |
|||
Front axle load kg |
14850 |
|||
Rear axle load kg |
25750 |
|||

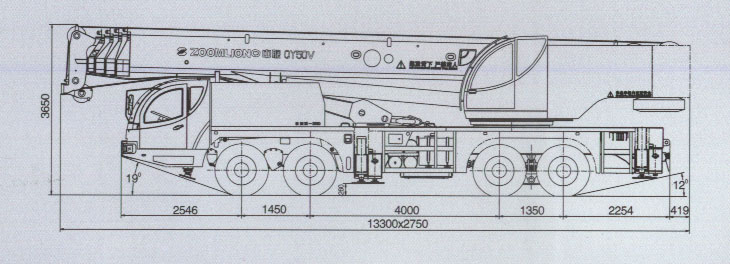

Dimension specification |
Overall dimensions(L ¡Á W ¡Á H) mm mm |
13300¡Á2750¡Á3650 |
||
Base on outriggers m |
5.92 |
|||
Distance between outriggers m |
6.90 |
|||
Main boom length m |
11.1¡«42.0 |
|||
Main boom angle ¡ã |
-2 ¡« 80 |
|||
Fly jib length m |
9.5, 16 |
|||
Offset angle of fly jib ¡ã |
0 , 30 |
|||
Chassis |
Model |
ZLJ5414 |
||
Class |
¢ò |
|||
Engine |
Model |
Euro¢ó(WP10.336) |
||
Rated power KW/r/min |
247/1900 |
|||
Max. output torque N.m/r/min |
1350/1350 ¡« 1500 |
Rated Lifting Capacity Table(Unit:kg) |
Working radius (m) |
Boom |
||||
Operate in side rear working erea with cylinder I and outriggers half extended |
|||||
Boom length |
|||||
11.1 |
16.9 |
22.7 |
28.5 |
34.3 |
|
3.0 |
55000 |
24000 |
|||
3.5 |
50500 |
24000 |
16000 |
||
4.0 |
44500 |
24000 |
16000 |
||
4.5 |
40000 |
23000 |
16000 |
12400 |
|
5.0 |
36000 |
21800 |
16000 |
12400 |
|
5.5 |
32000 |
20600 |
16000 |
12400 |
|
6.0 |
29000 |
19500 |
16000 |
12400 |
8500 |
6.5 |
26000 |
18500 |
15500 |
12000 |
8500 |
7.0 |
24000 |
17500 |
14600 |
11500 |
8500 |
7.5 |
22300 |
16600 |
14000 |
11000 |
8500 |
8.0 |
20300 |
15800 |
13300 |
10500 |
8500 |
9.0 |
15800 |
14600 |
12200 |
9500 |
8300 |
10.0 |
14100 |
11200 |
8600 |
7600 |
|
11.0 |
11700 |
10800 |
8000 |
7000 |
|
12.0 |
9800 |
10200 |
7500 |
6500 |
|
14.0 |
7900 |
6400 |
5600 |
||
16.0 |
6200 |
5550 |
4700 |
||
18.0 |
4800 |
4850 |
4100 |
||
20.0 |
4200 |
3600 |
|||
22.0 |
3400 |
3200 |
|||
24.0 |
2700 |
2800 |
|||
26.0 |
2300 |
||||
28.0 |
1800 |
||||
30.0 |
|||||
32.0 |
|||||
I |
0 |
0 |
0 |
0 |
0 |
II |
0 |
5.8 |
11.6 |
17.4 |
23.2 |
falls |
12 |
6 |
4 |
4 |
3 |
hook |
50t main hook |
Working radius (m) |
Boom |
Boom angle (¡ã) |
Boom + jib(m) |
|||||||||
Operate in side rear working erea with cylinder I and outriggers half extended |
42.00+9.50 |
42.00+16.00 |
||||||||||
Boom length |
offset angle |
offset angle |
||||||||||
11.1 |
15.0 |
18.8 |
24.6 |
30.4 |
36.2 | 42.0 | 0¡ã |
30¡ã |
0¡ã |
30¡ã |
||
3.0 |
50000 |
40000 |
32000 |
80 |
4500 |
2150 |
2800 |
1000 |
||||
3.5 |
44000 |
40000 |
32000 |
78 |
4500 |
2050 |
2600 |
1000 |
||||
4.0 |
38000 |
36000 |
32000 |
24000 |
76 |
4200 |
1950 |
2300 |
1000 |
|||
4.5 |
33000 |
32000 |
31000 |
23000 |
74 |
3800 |
1900 |
2000 |
1000 |
|||
5.0 |
27200 |
26600 |
26200 |
21800 |
16000 |
72 |
3000 |
1850 |
1800 |
1000 |
||
5.5 |
22200 |
21600 |
21300 |
20600 |
16000 |
70 |
2300 |
1650 |
1650 |
1000 |
||
6.0 |
18500 |
18000 |
17700 |
18900 |
16000 |
12400 |
68 |
1700 |
1250 |
1350 |
900 |
|
6.5 |
15700 |
15200 |
14900 |
16100 |
15500 |
12400 |
66 |
1200 |
900 |
900 |
700 |
|
7.0 |
13500 |
13000 |
12700 |
13900 |
14600 |
12400 |
9000 |
64 |
800 |
600 |
600 |
450 |
7.5 |
11700 |
11300 |
11000 |
12200 |
12900 |
12400 |
9000 |
62 |
500 |
|||
8.0 |
10300 |
9900 |
9600 |
10700 |
11400 |
11800 |
9000 |
60 |
||||
9.0 |
8000 |
7700 |
7400 |
8500 |
9100 |
9500 |
9000 |
58 |
||||
10.0 |
6100 |
5800 |
6800 |
7400 |
7800 |
8100 |
56 |
|||||
11.0 |
4800 |
4500 |
5500 |
6000 |
6400 |
6700 |
54 |
|||||
12.0 |
3800 |
3500 |
4500 |
5000 |
5400 |
5700 |
52 |
|||||
14.0 |
2000 |
3000 |
3500 |
3800 |
4100 |
|||||||
16.0 |
1000 |
1900 |
2400 |
2700 |
3000 |
|||||||
18.0 |
1100 |
1600 |
1900 |
2200 |
||||||||
20.0 |
1000 |
1300 |
1600 |
|||||||||
22.0 |
800 |
1100 |
||||||||||
24.0 |
600 |
|||||||||||
26.0 |
||||||||||||
28.0 |
||||||||||||
30.0 |
||||||||||||
32.0 |
||||||||||||
I |
0 |
3.9 |
7.7 |
7.7 |
7.7 |
7.7 |
7.7 |
Fall |
||||
II |
0 |
0 |
0 |
5.8 |
11.6 |
17.4 |
23.2 |
|||||
falls |
12 |
8 |
8 |
6 |
4 |
4 |
3 |
1 |
||||
hook |
50t main hook
|
4.5t auxiliary hook |
New sliding design for bracing support, side hydraulic luck |
|
Side hydraulic luck, avoiding heavy crash during the operation, ensures security. |
|
Anti-slew steel wire |
|
Longevity of service for the anti-slew steel wire, ensures the security of the lifting. |
|
Moment Limiter and Display |
|
Automatic moment limiter has the function of self testing and alarming. |
|
Major boom head and slider |
|
1¡¢Hexagon major boom adopts low alloy and high strength structure steel |
|
Hydraulic Motor |
|
1¡¢Supercharged inter-cooled engine, capable for working at place over 4500 meters altitude. |
Note: All specifications on our web-site are subject to technical modifications without notice. |
