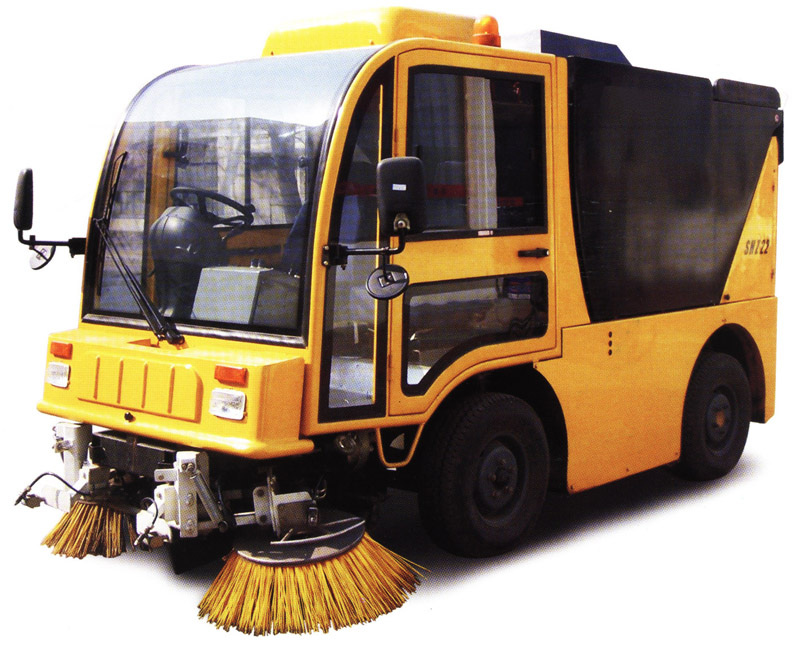

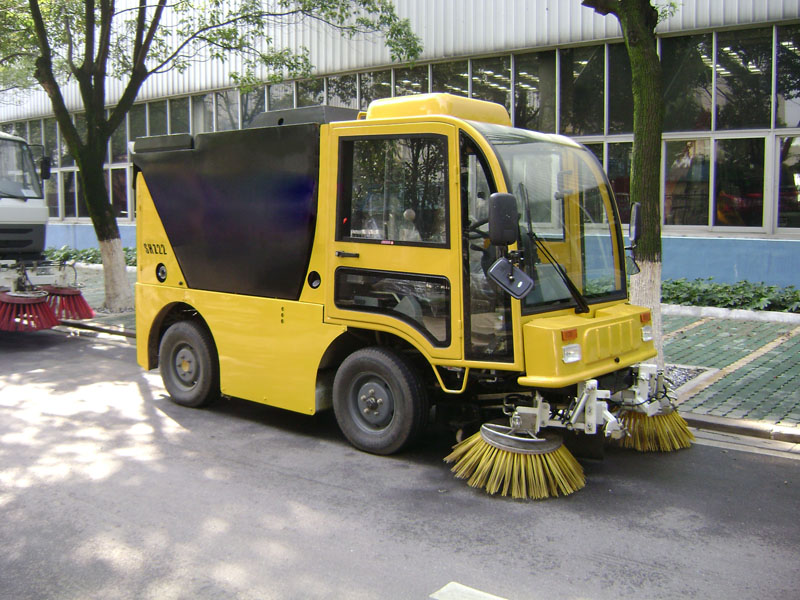

SHZ22 Sweeper Features The fully hydrostatic drive road sweeper is mainly used in sweeping city roads, walk streets, squares, gymnasium and palaestra, industry garden and resident court and other places where large road sweeping machine can't touch conveniently. Full hydrostatic drive, agile and mobile, refined appearance, dry dedusting system, environmentally friendly, having the capacity of shredding and compacting the light items. • The world-class Japanese Isuzu diesel engine, small vibration and low noise, long life time. • Using the excellent international brand elements as the key hydraulic components, ensuring good performance. • The inner case of the hopper is made of stainless steel;the hopper is anticorrosive and good-looking. • With large area safety glass, the cab providing a panoramic view, complete electric instrument ensuring convenient operation. • A hydraulic cylinder controls the brooms to move up and stretch out,anti-collision,self-reset and automatic wear compensating brushes. |
|
SHZ22 Sweeper
Technical Parameters |
Overall Dimensions(L×W×H) |
mm |
4190×1455×2280 |
Engine Model |
|
IVECO SOFIM8140.43 Diesel Motor |
Engine Power |
kW/rpm |
87/3600 |
Max. Sweeping Width |
m |
2.2 |
Max. sweeping capacity |
m2/h |
33000 |
Sweeping Speed |
km/h |
0 ～15 |
Max. Traveling speed |
km/h |
24.5 |
Min. Turning Radius |
m |
≤ 6 |
Stainless steel hopper effective volume |
L |
1570 |
Stainless steel water tank volume |
L |
500 |
Max GVW |
Kg |
4000 |
 |
| Note: All specifications on our web-site are subject to technical modifications without notice. |
