SHZ18A Sweeper
ZLJ5063TSLE3 Sweeper Features
Coring parts for Air operated and Hydraulic System is imported from oversea;
Front sweep in right and left can work individual or linkage in order to ensure for confirm left front sweep work individual or right front sweep work individual in effect;
Sweep trap speed can be adjusted and chose for high, middle and low level in according with its relative devices, which can ensure get good sweep effect and cut down operating costs under all pollution situation;
Independent hand pump emergency system,which can ensure perform work for draw in or out relative devices, lift garbage and easy for planting.

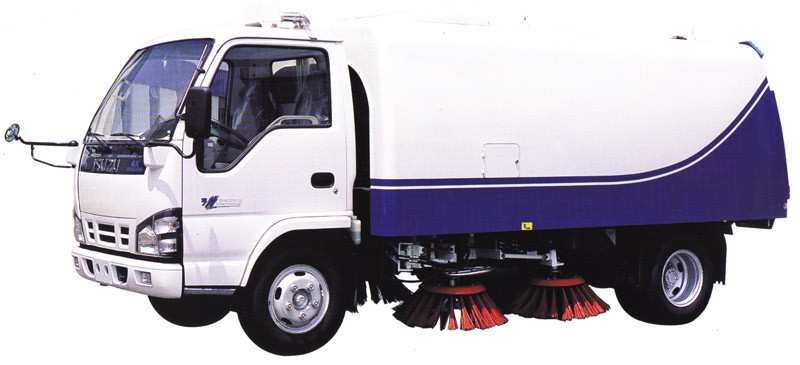

ZLJ5063TSLE3 Sweeper
The overall structural arrangement of original "Conter-positioned Four Brooms Postpositioned Suction Nozzle" , to ensure a wide sweeping width, short front axle suspension and easy replacement and adjustment of the suction nozzle.
ZLJ5063TSLE3 Sweeper Technical Parameters
Exterior Dimensions(L×W×H)

mm

5690×1990×2420

Chassis Model



NKR77LLLHACJAY(EURO Ⅲ)
Aux Engine Model



Diesel engine adopts ISUZU technique
Aux.Engine Power

kw/r/min

≥57/3600
Max Running Speed

km/h

100
Max Sweeping Width

m

3
Operating Speed

km/h

3-20
Max Sweeping Capacity

m2/h

60000
Stainless steel Refuse Container Capacity

m3

5
Stainless steel Water Tank Vol.
L
1000
Brush Rotational speed adjustment Mode
3-stage adjustment
The front brushes with spring impact protection system driver by good quality import hydraulic motors, typical of vigorous sweeping capacity and adjustable brush rotational speed.
Diesel engine of ISUZU technique adopted, with uniquely featured automatic clutch to ensure aux. engine for freeload start.
The cab provided with air-conditioning device for a comfortable operating environment, and quality imported electrical components applied for the centralized control electrical box, easy to operate. Modular hydraulic group valves integrated highly, and hydraulic pipelines neatly arranged, easy to maintain.
Note: All specifications on our web-site are subject to technical modifications without notice.
