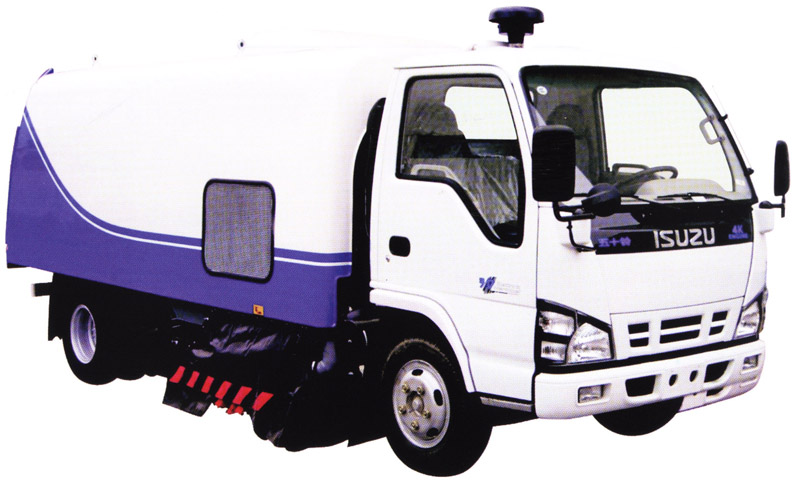

ZLJ5064TSLE3 Sweeper
ZLJ5064TSLE3 Sweeper Features
Special design for three stages dry dust cleaning control system and flow switch device for pneumatic conveying,which ensure sweeping car can perform operation during winter and rain season, which can realize woek in any environments;
Coring parts for Air operated and Hydraulic System is imported form overaea;
Sweep trap speed can be adjust and choose for high, middle and low level in according with its relative devices, which can ensure get good sweep effect and cut down operating cost under all pollution situation;
Set up high efficiency Spaarge dustfall system for garbage box discharge, which can resolve problems for dust rise when dry dust proof sweeping discharge completely.
ZLJ5064TSLE3 Sweeper

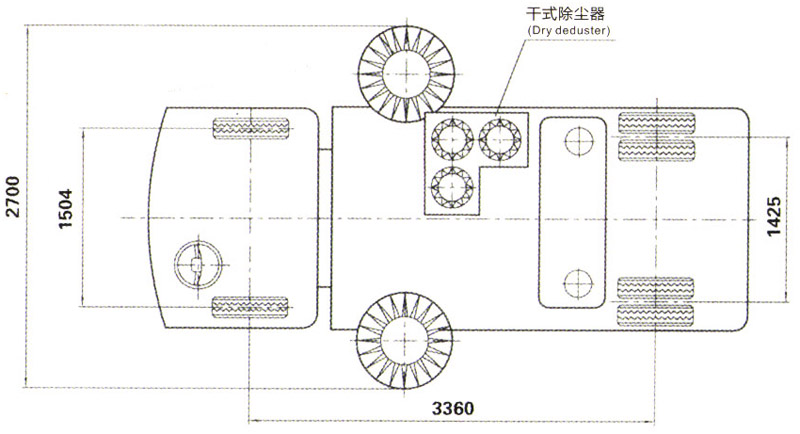

The overall structure arrangement mode of "Center-positioned Two Brooms Center-positioned Long Blowback Air Suction Nozzle",to have improved the sweeping efficiency and reduced the flying dusts arising from sweeping and brushing.
ZLJ5064TSLE3 Sweeper Technical Parameters
Exterior Dimensions(L×W×H)

mm

5690×1990×2445

Chassis Model



NKR77LLLACJAY(EURO Ⅲ)
Aux Engine Model



Diesel engine adopts ISUZU technique
Aux.Engine Power

kw/r/min

≥57/3600
Max Running Speed

km/h

100
Max Sweeping Width

m

2.7
Operating Speed

km/h

3-20
Max Sweeping Capacity

m2/h

54000
Stainless steel Refuse Container Capacity

m3

4.5
Max GVW
kg
6410
Quality import filter drum group, waterproof and oil-proof, for compressed air to blow dust, typical of high efficiency and more,reliable dedusting performance.
Modular hydraulic valves highly integrated and hydraulic pipelines neatly arranged, easy for maintenance.
The cab provided with air-conditioning device for a comfortable operating environment, and quality imported electrical components fitted in centralized control electrical box, easy to operate. Diesel engine of ISUZU technique adopted, and uniquely fetured automatic clutch toensure aux. engine for free-load start.
Note: All specifications on our web-site are subject to technical modifications without notice.
