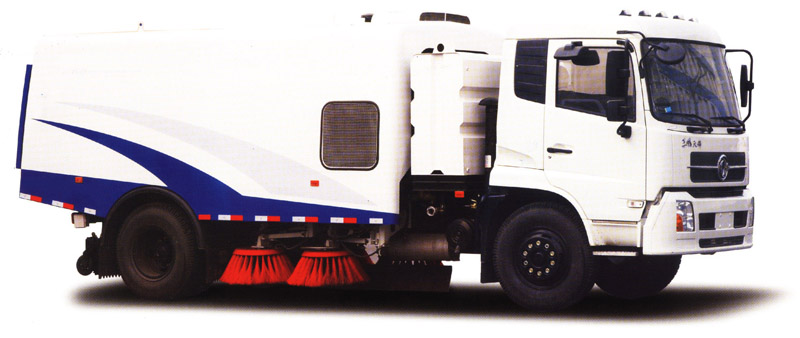

ZLJ5163TSLE3/ZLJ5163TSLE4 Sweeper
ZLJ5163TSLE3/ZLJ5153TSLE3/ZLJ5163TSLE4 Sweeper Features
Perfect combine unit for special reverse blow and building in short and lie sweep sucker structure, which can increase sweep efficacy in large, compared with same products, which can suit to mightiness sweep for futy road and keep good condition for normal road;
The adopted spray muzzle in fringe of front and back tray brush, which water smoke can press dust and set up spray muzzle in sucker exit, which can perform damp dust collection for air in garbage;
Option for user:assistance suck device, suck iron device , cleaning device for guardrail , snow shovel and other additional functions.
ZLJ5163TSLE3/ZLJ5163TSLE4 Sweeper

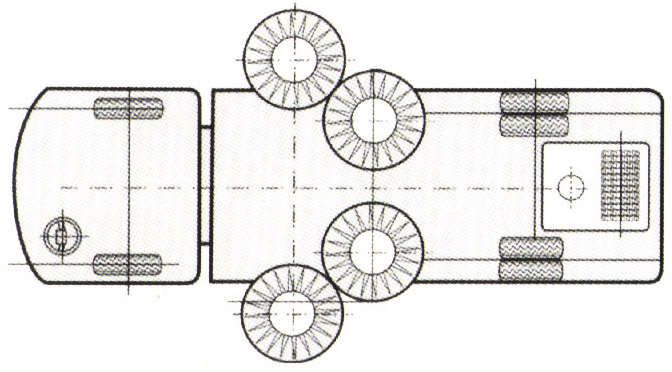

The overall structrue arrangement of uniquely featured"Center-positioned Four Brooms - Postpositioned Suction Nozzle",characterized by wide sweeping width, short front axle suspension, and unique built-in rolling type suction nozzle with internal horizontal brooms, which has greatly enhanced the cleaning effect.
ZLJ5163TSLE3/ZLJ5163TSLE4 Sweeper Sweeper Technical Parameters
TYPE
ZLJ5163TSLE3
ZLJ5153TSLE3
ZLJ5163TSLE4

Chassis Model



DONGFENG TIANJIN
DONGFENG
DONGFENG TIANJIN
Aux Engine Model & Power



Cummins EQ6BT5.9 118/2600
        EQB160-20 118/2600
       EQ4BT3.9 77/2800
       EQBT140-20 103/2700
Emission standard



Euro Ⅲ
Euro Ⅳ
Max Running Speed

km/h

85
Front sprayer working width

m

3.5
Operating Speed

km/h

5-30
Refuse Container Volume

m3/h

8
Water Tank Volume

L

3000/3400
1600/2000
3000/3400
Max GVW
kg
16000
14805
16000
Good quality import hydraulic motor to drive the brooms. for vigorous sweeping, with rotational speed of brooms adjustable, and more secured and reliable front brooms with anti-corrision function.
Modular hydraulic valves highly integrated and hydraulic pipelines neatly arranged in nice appearance, very easy to maintain.
The cab provided with air-conditioning device for a comforable operating environment, and good quality imported electrical components fitted in the centralized control electrical box, easy for operation. Cummins water cooled and turbocharged diesel engine to drive the special fan blower of the road sweeper, typical of vigorous power.
Note: All specifications on our web-site are subject to technical modifications without notice.
