ZLJ5164TSLE3/ZLJ5154TSLE3/ZLJ5164TSLE4 Sweeper Features It is set up a complete new pneumatic conveying system with parts wind volume filtration for parts reverse blow circulation as well as wind channel switch air damper during rainy day operation, which can realize working condition switch between dry dust collection operation and sweep operation in rainy day, so which can working in all weather condition without referenceto weather condition. With road condition, floating multidimensional reverse blow pneumatic Conveying circulation can be flatted, so which can increase effect for sucker largely. |
 |

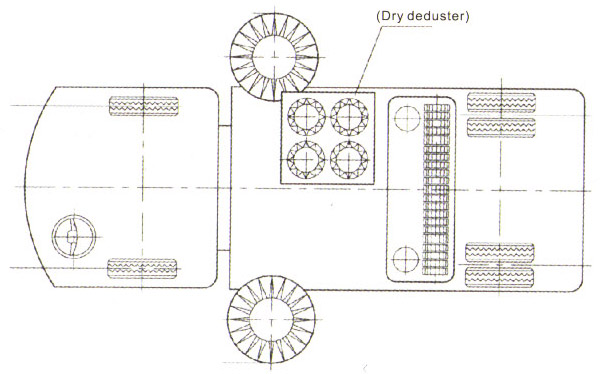

| The overall structure of operating arrangement mode "Center-positioned Two Brooms-Center-positioned Long blowback Suction Nozzle",able for sweeping operation closely along the roadside with brooms, very applicable to cleaning operations on expressways, city roads, and other sites. |
|
ZLJ5164TSLE3/ZLJ5154TSLE3/ZLJ5164TSLE4 Sweeper Sweeper
Technical Parameters |
TYPE |
ZLJ5164TSLE3 |
ZLJ5154TSLE3 |
ZLJ5164TSLE4 |
|
Chassis Model |
|
DONGFENG TIANJIN |
DONGFENG |
DONGFENG TIANJIN |
Aux Engine Model & Power |
|
Cummins EQ6BT5.9 118/2600
EQB160-20 118/2600 |
||
Emission standard |
|
Euro Ⅲ |
Euro Ⅳ |
|
Max Running Speed |
km/h |
85 |
||
Front sprayer working width |
m |
3.5 |
||
Operating Speed |
km/h |
5-25
|
||
Refuse container Volume |
m3 |
8.5 |
6 |
8.5 |
Water Tank Volume |
L |
1400 |
1000 |
1400 |
Max GVW |
kg |
16000 |
15480 |
16000 |
 |
 |
Quality import filter drum group,waterproof and oil-proof,for compressed air to blow dust,typical of high dedusting effiency and more reliable performance. |
The cab provided with air-conditioning device for a comfortable operating environment, and quality import electrical components fitted in the centralized control electric box,easy for operation. |
 |
 |
| Modular hydraulic valves highly integrated, and hydraulic pipelines neatly arranged in nice appearance, easy for maintenance. | Cummins water cooled and turbccharged diesel engine to drive the special fan blower, typical of vigorous driving force. |
| Note: All specifications on our web-site are subject to technical modifications without notice. |
