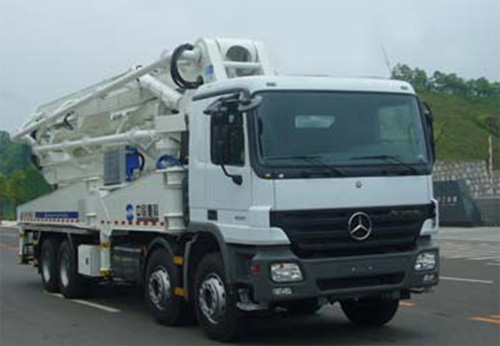

ZLJ5396THB 48-5RZ truck-mounted concrete pump Technical Data in Travel Configuration |
Model |
ZLJ5396THB 48-5RZ |
|
Pumping system |
Max. Theor. output m3/h |
120/70 |
Max. Theor. concrete output Pressure MPa |
11/7 |
|
Rated working pressure MPa |
35 |
|
Pumping frequency min -1 |
22 |
|
Hopper capacity L |
550 |
|
Filling height mm |
1540 |
|
Hydraulic system type |
Close |
|
Distribution valve |
S valve |
|
Oil cylinder dia . × stroke mm |
φ 130 × 2100 |
|
Concrete cylinder dia . × stroke mm |
φ 230 × 2100 |
|
Hydraulic oil cooling |
Air cooling |
|
Recommended concrete slump cm |
12~23 |
|
Max. aggregate dimension mm |
40 |
|
Placing boom |
Structure type |
48-5RZ |
Placing depth m |
47.8 |
|
Horizontal distance m |
43.8 |
|
Placing depth m |
33.4 |
|
Slewing angle |
365 ° |
|
Boom number |
5 |
|
The length of boom section mm |
9780/8600/8490/8370/8560 |
|
Sections folding angle |
90 °/180 °/180 ° |
|
Pipe diameter mm |
125 |
|
End hose length mm |
3000 |
|
Min. height of opening placing boom mm |
9500 |
|
Outriggers span (front × rear × side ) mm |
9950 × 9990 × 9875 |
|
Chassis and the whole machine |
Chassis model |
Actros 4141 8 × 4 |
Wheelbase mm |
1700+4600+1350 |
|
Engine type |
OM501LA |
|
Engine power kW/(r/min) |
300/1800 |
|
Engine moment N.m/(r/min) |
2000/1080 |
|
Maximum displacement cc |
11946 |
|
Oil tank cubage L |
400 |
|
Tail gas exhaust standard |
Euro. Ⅲ |
|
Total weight kg |
39000 |
|
Overall dimensions mm |
13020 × 2500 × 4000 |
|
Others |
Lubrication mode |
Automatic lubrication |
Oil tank volume L |
650 |
|
Control mode |
Manual ＋ remote control |
|
Maximum water pressure MPa |
7 |
|
Water tank volume L |
400 |
|
Pipe cleaning mode |
Water cleaning/dry cleaning |
|
| Note: All specifications on our web-site are subject to technical modifications without notice. |
 |
